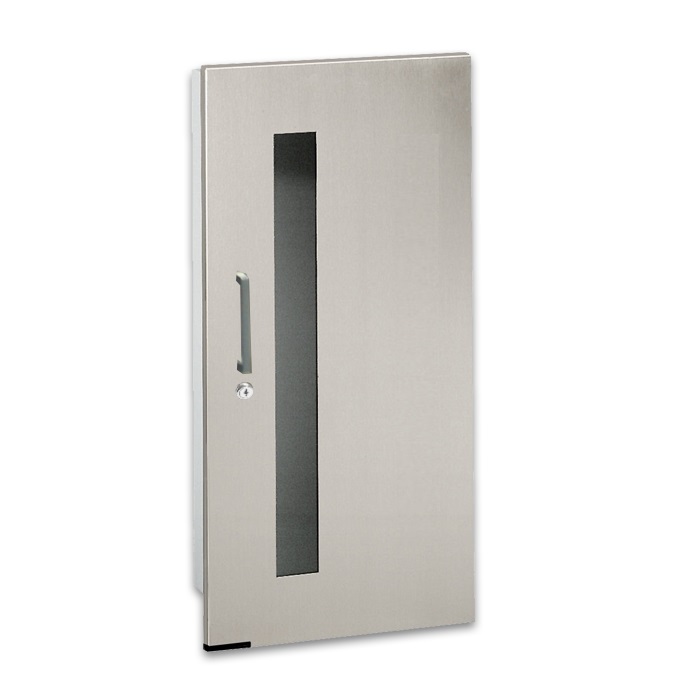

The JL Industries Embassy Series Cabinets features the most elegant door style in the JL Industries product line. The 5634W10 is a #4 Stainless Steel Cabinet with a vertical duo glazed door and a SAF-T-LOK™ & pull handle. The 7/8" formed design cabinet doors are also available in 4 other materials. The door feature two concealed hinges with concealed handle and roller catch. The tub is constructed of cold rolled steel with a white powder coat finish standard. ADA Compliant.

The 5634W10 comes with clear acrylic glazing standard. The 5634W17 comes with clear tempered glass glazing (optional above). The 5634W18 comes with laminated safety glass glazing (optional above).

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Embassy Knockout Placement	JL Catalog	Warranty

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
10-1/2" x 24 " x 5-3/4"	12-3/4" x 26-1/4" x 7/8"	11½" x 25" x 6"	2½, 5, 10 lbs.

Available Options:

• Solid Door
• Aluminum, Satin Bronze, or Polished Bronze, Powder Coated Steel
• Safety Lock
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver

Embassy Door Styles	Bronze Finishes	Aluminum Finishes
Colors	Decals	Tub Finishes
Locks & Pulls	Alarms

JL Industries a division of Activar Construction Products Group, Inc. Model C5634W10
