JL Embassy 5614W10 Trimless Recessed 10 lbs. Fire Extinguisher Cabinet w/ Lock

Item #: JLI-5614W10

~~Was: $220.95~~

Price: $220.95

Optional:

Vertical Red Decal / add $4.00

Vertical Black Decal / add $4.00

Optional:

Clear Acrylic 5614W10 ---- / add $0.00

Clear Tempered 5614W17 / add $9.37

Update price

Quantity:

Estimate Shipping

Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers Most Elegant Door Style Vertical Duo Door Glazing SAF-T-LOK™ Keyed Cylinder Lock Pull Handle "Fire Extinguisher" decal (optional above) Concealed Hinges Concealed Roller Catch One Year Warranty ADA Compliant Made in America	Lead-Time 15 Working Days

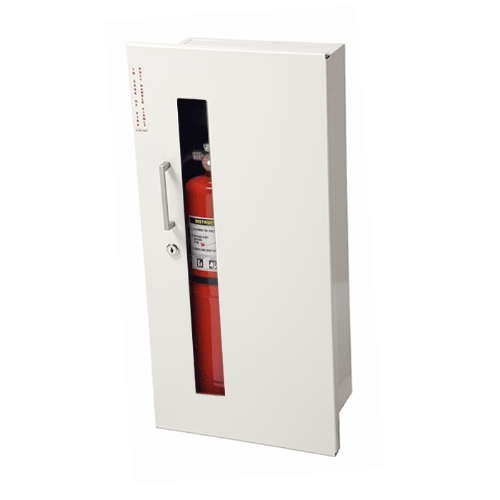

JL Embassy 5614W10 Trimless Recessed 10 lbs. Fire Extinguisher Cabinet w/ Lock

Description

The JL Industries Embassy Series Cabinets features the most elegant door style in the JL Industries product line. The 5614W10 is a powder coated steel cabinet with a vertical duo glazed door with SAF-T-LOK™ pull handle. The 7/8" formed design cabinet doors are also available in 4 other materials. The door feature two concealed hinges with concealed handle and roller catch. The tub is constructed of cold rolled steel with a white powder coat finish standard. ADA Compliant.

The 5614W10 comes with clear acrylic glazing standard. The 5614W17 comes with clear tempered glass glazing (optional above).

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Embassy Knockout Placement	JL Catalog	Warranty

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
10-1/2" x 24 " x 5-3/4"	12-3/4" x 26-1/4" x 7/8"	11½" x 25" 5-7/8"	2½, 5, 10 lbs.

Available Options:

Solid Door
Stainless Steel, Satin Bronze, or Polished Bronze, Clear Anodized Aluminum
Additional Tub Colors - Black or Red
Alarm Systems
Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver

Embassy Door Styles	Bronze Finishes	Aluminum Finishes
Colors	Decals	Tub Finishes
Locks & Pulls	Alarms
