  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Most Elegant Door Style
  • Vertical Duo Door Glazing
  • US3 Brass Finish
  • "Fire Extinguisher" decal (optional above)
  • Concealed Hinges
  • Concealed Handle and Roller Catch
  • One Year Warranty
  • ADA Compliant
  • Made in America

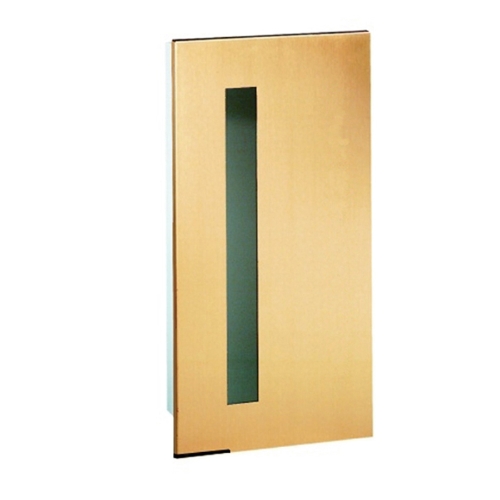

JL Embassy 5654V10 Trimless Recessed Vertical Duo Brass 10 lbs. Fire Extinguisher Cabinet


The JL Industries Embassy Series Cabinets Feature the Most Elegant Door Style in the JL Industries Product Line. The 5654V10 is a US3 Brass Cabinet with a Vertical Duo glazed door. The 7/8" formed design cabinet doors are also available in 4 other materials. Vertical Duo Door Glazing. The door feature two concealed hinges with concealed handle and roller catch. The tub is constructed of cold rolled steel with a white powder-coat finish standard. ADA Compliant.

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Wall Opening
W x H x D
Extinguisher Size
10-1/2" x 24 " x 5-3/4" 12-3/4" x 26-1/4" x 7/8" 11½" x 25" 6" 2½, 5, 10 lbs.


Available Options:

  • Solid Door
  • Aluminum, Bronze, Stainless Steel or Powder Coated Steel
  • Safety Lock
  • Additional Tub Colors - Black or Red
  • Alarm Systems
 Locks & Pulls  Alarms

JL Industries a division of Activar Construction Products Group, Inc. Model
