Quantity Discounts
Call Us 800-608-6568

25 Business Day Lead Time

  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Most Elegant Door Style
  • Vertical Duo Door Glazing
  • #4 Satin Stainless Steel
  • "Fire Extinguisher" decal (optional above)
  • Concealed Hinges
  • Concealed Handle and Roller Catch
  • One Year Warranty
  • ADA Compliant
  • Made in America

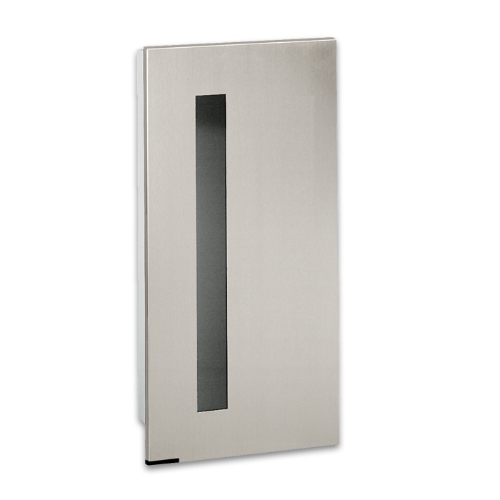

JL Embassy 5634V10 Trimless Recessed Vertical Duo Stainless Steel 10 lbs. Fire Extinguisher Cabinet


The JL Industries Embassy Series Cabinets Feature the Most Elegant Door Style in the JL Industries Product Line. The 5634V10 is a #4 Stainless Steel Cabinet with a solid glazed door. The 7/8" formed design cabinet doors are also available in 4 other materials. Vertical Duo Door Glazing. The door feature two concealed hinges with concealed handle and roller catch. The tub is constructed of cold rolled steel with a white powder-coat finish standard. ADA Compliant.

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Wall Opening

W x H x D
Extinguisher Size
10-1/2" x

24 " x 5-3/4"
12-3/4" x 26-1/4" x

11½" x 25"


5, 10 lbs.


Available Options:

  • Solid Door
  • Aluminum, Satin Bronze, or Polished Bronze, Powder Coated Steel
  • Safety Lock
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
 Locks & Pulls  Alarms

JL Industries a division of Activar Construction Products Group, Inc. Model
