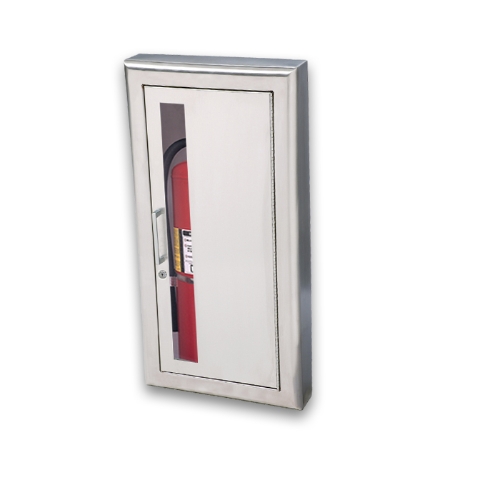

JL Cosmopolitan Stainless Steel 1036V10-FX2 Fire Rated Semi-Recessed 10 lbs. Fire Extinguisher Cabinet

The Cosmopolitan Series is a modern, clean look stainless steel cabinet.  Door and trim are #4 stainless steel.  Flush cabinet doors have a 5/8" door stop and are attached by a continuous hinge with a zinc-plated handle and roller catch. All models have 1-3/4" trim on face and door.  The door is a vertical duo door style. Cabinet and handle protrude 3-3/4 " from the surface.

Fire-Rating: The recessed and semi-recessed Fire-FX2™ cabinets are tested to maintain one and two hour fire-rated wall barriers, in accordance with ANSI/UL-1479 (ASTM E814 and ULC/CAN S115) for membrane and penetration firestrops. Installation instructions must be strictly adhered to in order to obtain the fire rating. The installation of any fire-rated cabinet which lacks a cabinet door or a condition in which the door is left ajar, will void the fire rating.

The 1036V10-FX2 comes with clear acrylic glazing standard.  The 1036V17-FX2 comes with clear tempered glass glazing (optional above).   The 1036V18-FX2 comes with laminated safety glass glazing (optional above).

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
10½" x 24" x 6"	13-7/8" x 27-3/8 " x 3-3/4"	11½" x 25" x 4-5/8"	2½, 5, 10 lbs.

Available Options:

• Solid Door or Full Glass
• SAF-T-LOK™ lock
• Additional Stainless Steel Finishes
• Additional Tub Colors - Black or Red
• Alarm Systems
• Etched or Engraved Lettering in Glass or Metal

Stainless Steel Finishes	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C1036V10-FX2
C1036V17-FX2
C1036V18-FX2
C1036V10A-FX2
C1036V17A-FX2
C1036V18A-FX2
