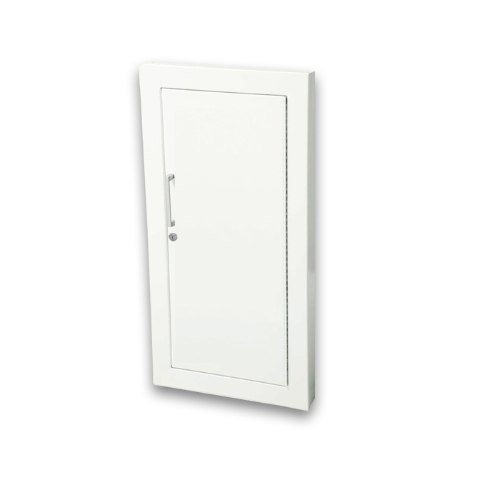

The Ambassador 8116 series is a durable, attractive steel cabinet with powder coat finish that stands up to conditions in commercial buildings. Door and trim are cold rolled steel with white powder coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc plated handle and roller catch. All models have 1-1/2" square trim protruding from the surface. Solid door glazing. Semi recessed cabinet and handle protrude 2-1/4" from the surface. The tub is constructed of cold rolled steel with white powder coat finish standard.
|
Fire Extinguisher Cabinet Dimensions
|
Interior Tub Size
W x H x D
|
Overall Outside Trim
W x H x D
|
Wall Opening
W x H x D
|
Extinguisher Size
|
|
9" x 18" x 5½"
|
12-3/8" x 21-3/8" x 1-1/2"
|
10" x 19" 4-1/8"
|
2 1/2, 5 lbs.
|
Available Options:
- Vertical Duo or Full Glass Door
- Stainless Steel
- Safety Lock
- Flush Handle
- Additional Tub Colors - Black or Red
- Alarm Systems
- Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
- Etched or Engraved Lettering in Glass or Metal
JL Industries a division of Activar Construction Products Group, Inc. Models:
C8116L22
C8116L22A
