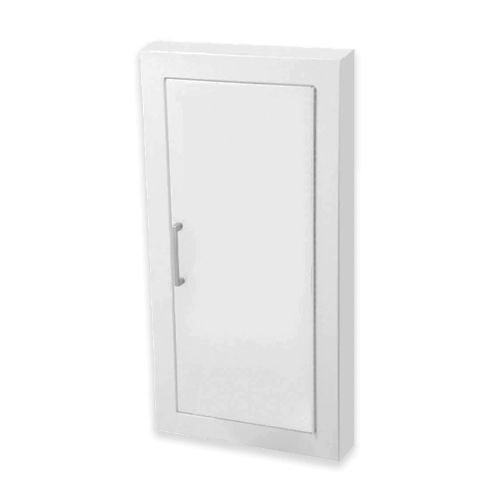

The JL Ambassador 1016S21 semi-recessed 10 lb. fire extinguisher cabinet features cold rolled steel door, trim, and tub construction with a white powder coat finish.  Designed for semi-recessed wall installations requiring storage for 2.5 lb., 5 lb., or 10 lb. fire extinguishers.  This cabinet is ADA compliant when properly configured and installed.  The cabinet door is attached with a continuous hinge and equipped with a zinc plated handle and roller catch.  All models have 1-3/4" trim on face and door.  The cabinet and standard zinc handle protrude 2-1/8" from the surface.  The tub is constructed of cold rolled steel with white powder coat finish standard.

The ambassador series 1016 comes with a standard pull handle and can be replaced with a Futura “Fire” handle cast aluminum or chrome pull handle (optional above) or the ADAC Recessed Pull Handle (optional above).

Submittal Sheet	Options Supplemental	JL Catalog
Cross Reference	Installation Instructions	Made In USA
Warranty	Maintenance Instructions	Specifications

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Sizes
10-1/2" x 24" x 6"	13-7/8" x 27-3/8" x 1-1/4"	11-1/2" x 25" x 4-5/8"	2½, 5, 6, 10 lb.

Available Options: (see Optional Supplemental)

• Vertical Duo or Full Glass Door
• Stainless Steel
• Aluminum
• Safety Lock
• No Handle Cylinder Safety Lock Only
• Alarm Systems
• ADAC Recessed Flush Pull Handle (optional above)
• Colors: White, Red, Black, Grey (optional above)
• Additional Colors - See Color Chart Link Below
• Etched or Engraved Lettering in Glass or Metal

Decals Die Cut Lettering Signs

Color Chart

Replacement Parts
Tub:	TUB-10-PP
Trim:	T-1016
Door:	D-101S
Trim & Door:	TD-101S
Hardware Pack:	HPFPUS

JL Industries a division of Activar Construction Products Group, Inc.
C1016S21
C1016S21A
