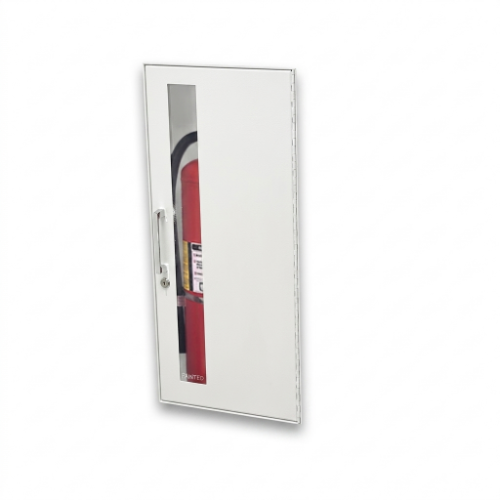

The JL Ambassador 1014WW10 trimless fully recessed 10 lb. fire extinguisher cabinet is designed for drywall installation where a clean flush finished appearance is preferred.  The trimless design helps blend the cabinet into the wall surface and is ideal for interior wall installations in commercial buildings, schools, offices, healthcare facilities, retail buildings, and other commercial interiors.  This model holds 2.5 lb., 5 lb., or 10 lb. fire extinguishers. SAF-T-LOK™ is included for quick access while helping deter unauthorized use.  Constructed of steel with a white powder-coat finish, the 1014WW10 is Made in America and backed by a one year warranty.

The 1014WW10 comes with clear acrylic glazing standard.  The 1014WW17 comes with clear tempered glass glazing (optional above).

Submittal Sheet	Trimless Details	JL Catalog
Maintenance Instructions	Options Supplemental	Cross Reference
Installation Instructions	Specifications	Warranty
	Made In USA

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H	Wall Opening W x H x D	Extinguisher Size
10-1/2" x 24 " x 6"	13" x 26-1/2"	11-1/2" x 25" x 6-1/8"	2½, 5, 6, 10 lbs.

Available Options: (see Optional Supplemental)

• Solid Door or Full Glass Door
• Stainless Steel
• Aluminum
• No Handle Cylinder Safety Lock Only
• Alarm Systems
• ADAC Recessed Flush Pull Handle (optional above)
• Colors: White, Red, Black, Grey (optional above)
• Additional Colors - See Color Chart Link Below
• Etched or Engraved Lettering in Glass or Metal

Decals Die Cut Lettering Signs

Color Chart

Replacement Parts
Door:	D-101W
Hardware Pack:	HPFPUS



JL Industries a division of Activar Construction Products Group, Inc. Models:
1014WW10
1014WW17
