Questions?
Quantity Discounts
Call Us 800-608-6568
Quantity:
  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Vertical Duo Door - Clear Acrylic Glazing
  • SAF-T-LOK™ Keyed Cylinder Lock
  • "Fire Extinguisher" decal (optional above)
  • Clear Tempered Glass (optional above)
  • One Year Warranty
  • ADA Compliant
  • Made in America

Lead-Time
3 Business Days

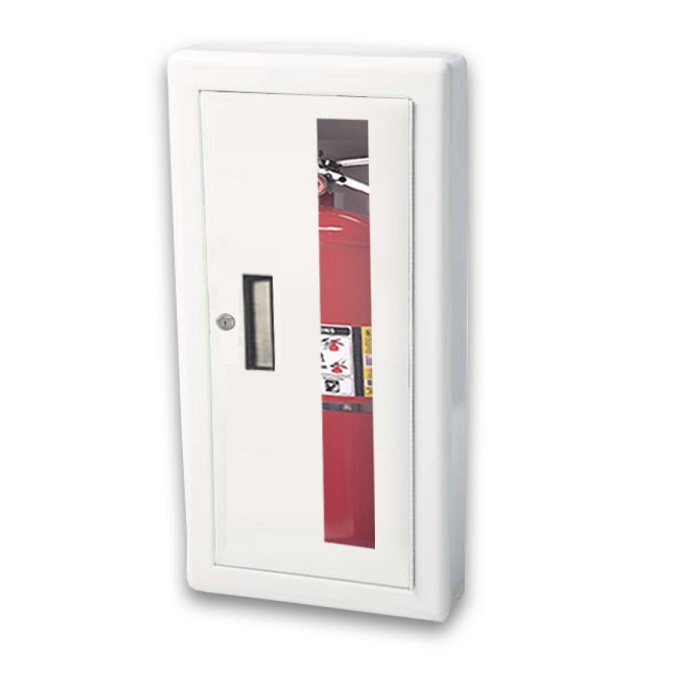

JL Ambassador 1012W10 Semi-Recessed 10 lbs. Fire Extinguisher Cabinet

Description

The ambassador series is a durable, attractive steel cabinet with powder-coat finish that stands up to conditions in commercial buildings. Door and Trim are cold rolled steel with white powder-coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch. All models have 1-3/4" trim on face and door. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. The door is a Vertical Duo Style of clear acrylic glass. Semi-Recessed Cabinet and ADAC flush pull handle protrude 4" from the surface. The tub is constructed of cold rolled steel with white powder-coat finish standard.

The 1012W10 comes with clear acrylic glazing standard. The 1012W17 comes with clear tempered glass glazing (optional above)

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Wall Opening
W x H x D
Extinguisher Size
10-1/2" x 24 " x 6" 13-7/8" x 27-3/8 " x 4" 11½" x 25" 2-1/8" 2½, 5, 10 lbs.

Available Options:

  • Full Glass or Solid Door
  • Stainless Steel
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
  • Etched or Engraved Lettering in Glass or Metal

JL Industries a division of Activar Construction Products Group, Inc. Model C1012W10A

JL Industries a division of Activar Construction Products Group, Inc. Model C1012W17A
