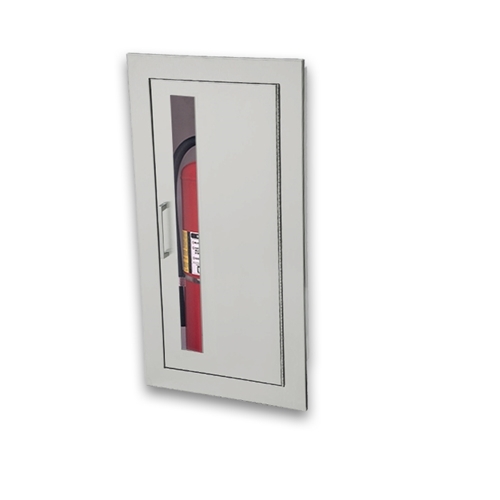

The JL Academy aluminum 1825W10 fire extinguisher cabinet with lock is a durable, attractive aluminum cabinet that stands up to conditions in commercial Buildings. Door and Trim are clear anodized aluminum. Flush cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. All models have 1-3/4" trim on face and door. Surface mounted has a square edge. Cabinet and handle protrude 1-1/8" from the surface. The tub is constructed of cold rolled steel with white powder-coat finish.

The Academy Seriese comes with a standard pull handle that can be replaced with a Futura “Fire” handle (optional above) or the ADAC Recessed Pull Handle(optional above).

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specification	Made In USA
Warranty	JL Catalog

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
10½" x 24 " x 5½"	13-7/8" x 27-3/8 " x 3/8"	11½" x 25" x 5-3/8"	2½, 5, 6 lb.

Available Options: (see Optional Supplemental)

• Solid Door or Full Glass Door
• Stainless Steel
• White Painted Steel
• Aluminum Tub (Surface Mounted)
• No Lock
• Flush Handle
• Alarm Systems
• Dark Bronze Anodized Finish
• Etched or Engraved Lettering in Glass or Metal

Decals Die Cut Lettering Signs

Replacement Parts
Tub:	TUB-10-PP
Trim:	T-102
Door:	D-102W
Trim & Door:	T-102W
Glazing:	G-10F10
Hardware Pack:	HPF
Handle:	PRH
SAF-T-LOK™:	SL-LC
Latch:	LC

JL Industries a division of Activar Construction Products Group, Inc. Models:
C1825W10
C1825W13
C1825W17
C1825W18
C1825W10A
C1825W13A
C1825W17A
C1825W18A
