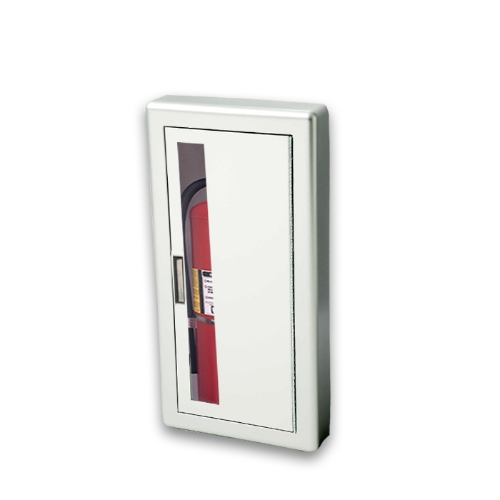

The JL Academy Aluminum 1022W10A Semi-Recessed 4" Rolled Edge with Flush Handle 10 lbs. Fire Extinguisher Cabinet with Lock stands up to conditions in commercial buildings. Door and Trim are clear anodized aluminum. Cabinet doors are attached by a continuous hinge and equipped with flush recessed handle and roller catch. All models have 1-3/4" trim on face and door. Semi-Recessed with 4" Rolled Edge,  flush handle with lock. Vertical Duo style door glazing. Cabinet and handle protrude 4" from the surface. Tub is constructed of cold rolled steel with white powder coated finish. ADA Compliant.

The 1022W10A comes with clear acrylic glazing standard.  The 1022W17A comes with clear tempered glass glazing (optional above).  The 1022W18A comes with laminated safety glass glazing (optional above).

Submittal Sheet	Options Supplemental	JL Catalog
Cross Reference	Installation Instructions	Made In USA
Warranty	Maintenance Instructions	Specifications

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H	Wall Opening W x H x D	Extinguisher Size
10-1/2" x 24 " x 6"	13-7/8" x 27 x 4"	11½" x 25" x 3"	2½, 5, 10 lbs.

Available Options: (see Optional Supplemental)

• Full Glass or Solid Door
• Stainless Steel
• White Painted Steel
• Aluminum Tub - Clear Anodized
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Anodized Color Finishes - Dark Bronze
• Etched or Engraved Lettering in Glass or Metal

Decals Die Cut Lettering Signs

Color Chart

Replacement Parts
Tub:	TUB-102-PP
Trim:	T-102
Door:	D-102W
Trim & Door:	T-102W
Glazing:	G-10F10
Hardware Pack:	HPF
Handle:	PRH
SAF-T-LOK™:	SL-LC
Latch:	LC

JL Industries a division of Activar Construction Products Group, Inc. Models:
C1022W10A
C1022W17A
C1022W18A
