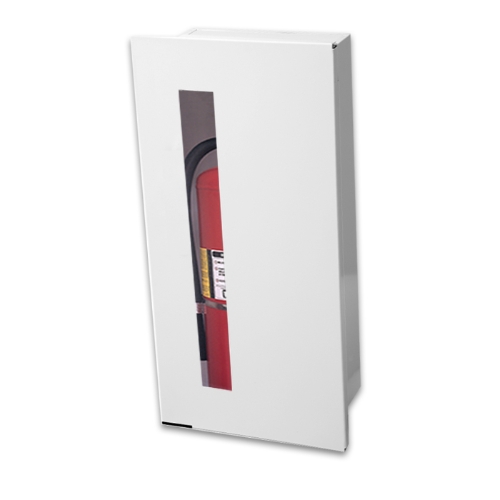

The JL Embassy 5614V10 trimless recessed 10 lb. fire extinguisher cabinet features a clean architectural trimless design with vertical duo glazing.  This recessed cabinet is manufactured from cold rolled steel and includes a concealed pull handle and a concealed continuous hinge that opens over 180 degrees.  The tub is finished in a standard white powder coat finish and is designed for commercial interior wall installations.  Features an ADA compliant overlapping door design for drywall, plaster, or stucco wall applications.  Commonly specified for offices, schools, hospitals, hotels, and other commercial buildings.

The 5614V10 comes standard with clear acrylic glazing.  The 5614V17 model includes clear tempered glass glazing (optional above).  Additional finishes, glazing styles, glazing materials, door styles, locks, alarms, decals, and trim options shown in the manufacturer’s submittal below.

Submittal Sheet	Options Supplemental	JL Catalog
Cross Reference	Installation Instructions	Specifications
Embassy Knockout Placement	Maintenance Instructions	Warranty
Trimless Cabinet Details		Made In USA

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H	Wall Opening W x H x D	Extinguisher Size
10-1/2" x 24 " x 5-3/4"	12-3/4" x 26-1/4"	11½" x 25" x 6"	2½, 5, 10 lbs.

Available Options: (see Optional Supplemental)

• Solid Door
• Stainless Steel
• Aluminum
• Safety Lock
• Alarm Systems
• Additional Tub Colors
• Colors: White, Red, Black, Gray (optional above)
• Additional Colors - See Color Chart Link Below
• Etched or Engraved Lettering

Decals Die Cut Lettering Signs

Color Chart

Replacement Parts
Tub:
Door:
Glazing :
Hardware Pack:	HPF
