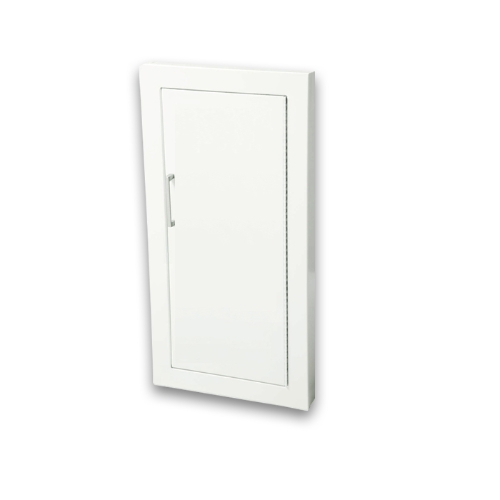

JL Ambassador 8116S21 semi recessed fire extinguisher cabinet is constructed of cold rolled steel with a white powder coat finish. The solid door features a continuous hinge, zinc plated handle, and roller catch, with 1-1/2" square trim. The cabinet accommodates 2-1/2 lb. and 5 lb. fire extinguishers and has a 9" W × 18" H × 5-1/2" D interior tub. The cabinet is ADA compliant and Made in America.

Submittal Sheet	Installation Instructions	Cross Reference
Specifications	Maintenance Instructions	Warranty
JL Catalog	Made In USA

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
9" x 18" x 5½"	12-3/8" x 21-3/8 " x 1-1/2"	10" x 19" 4-1/8"	2 1/2, 5 lbs.

Available Options:

• Solid Door with Pull Handle
• Stainless Steel
• Safety Lock
• Flush Handle
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C8116S21
C8116S21A
