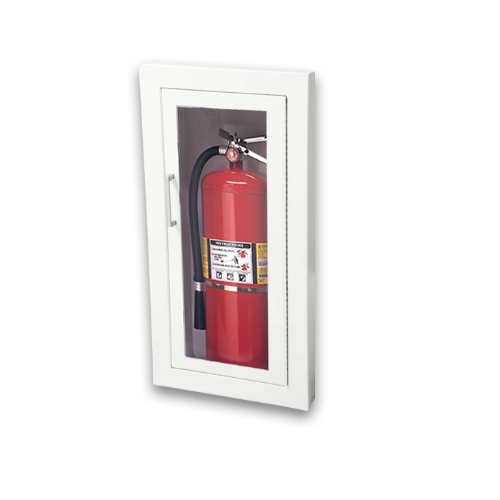

The Ambassador 8116 series is a durable, attractive steel cabinet with powder coat finish that stands up to conditions in commercial buildings. Door and Trim are cold rolled steel with white powder coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch.  All models have 1-1/2" square trim protruding from the surface. The door is a Full Glass Style of clear acrylic glass. Semi-Recessed Cabinet and handle protrude 2-1/4" from the surface. The tub is constructed of cold rolled steel with white powder coat finish standard.

The 8116V10 comes with clear acrylic glazing standard. The 8116V17 comes with clear tempered glass glazing (optional above). The 8116V18 comes with laminated safety glass glazing (optional above).

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Available Options:

• Vertical Duo or Solid Door
• Stainless Steel
• Safety Lock
• Flush Handle
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C8116V10
C8116V10A
C8116V17
C8116V17A
C8116V18
C8116V18A
