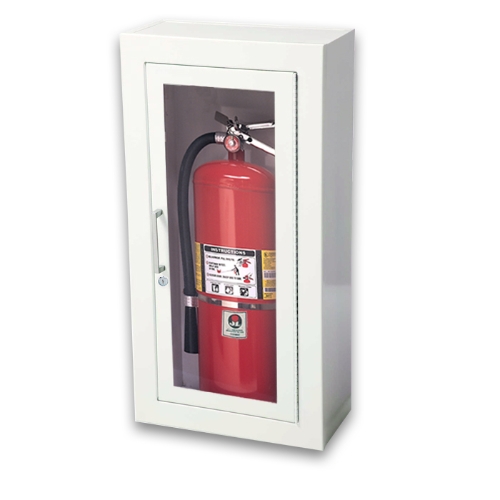

JL Ambassador 1013G10 is a surface mounted steel fire extinguisher cabinet with full glass door glazing and a lock. The cabinet holds 5 lb. or 10 lb. fire extinguishers and features cold rolled steel door and trim with a white powder coat finish. The Ambassador Series cabinet doors are attached with a continuous hinge and include a zinc plated handle and roller catch. SAF-T-LOK™ theft-deterrent keyed cylinder lock is included. The 1013G10 is designed for commercial building applications.
SAF-T-LOK™ can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered.
|
Fire Extinguisher Cabinet Dimensions
|
Interior Tub Size
W x H x D
|
Overall Outside Trim
W x H x D
|
Extinguisher Size
|
|
13-11/16" x 27-3/16" x 6-1/2"
|
13-7/8" x 27-3/8" x 7-1/4"
|
2-1/2, 5, 10 lbs.
|
Available Options:
- Vertical Duo or Solid Door
- Stainless Steel
- Flush Handle
- Additional Tub Colors - Black or Red
- Alarm Systems
- Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
- Etched or Engraved Lettering in Glass or Metal
JL Industries a division of Activar Construction Products Group, Inc. Models:
C1013G10
C1013G17
