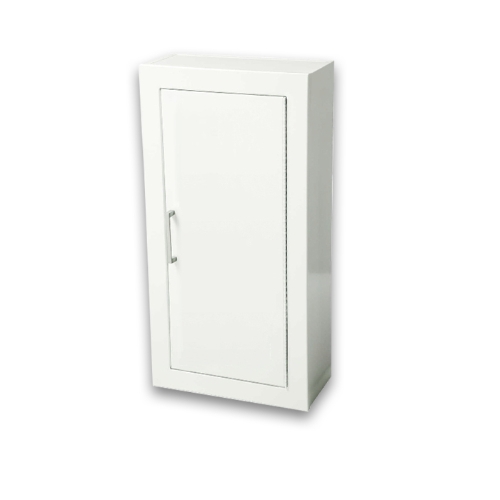

The Ambassador Series is a durable, attractive steel cabinet with powder coat finish that stands up to conditions in commercial buildings. Door and trim are cold rolled steel with white powder coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc plated handle and roller catch. All models have 1-3/4" trim on face and door. Cabinet and handle protrude 7-1/4" from the surface. The tub is constructed of cold rolled steel with white powder coat finish standard.

Submittal Sheet	Installation Instructions	Cross Reference
Specifications	Maintenance Instructions	Warranty
JL Catalog	Made In USA

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
9" x 18" x 5½"	12-3/16" x 21-3/16 " x 6"	12-3/8" x 21-3/8 " x 7-1/4"	2 1/2, 5 lbs.

Available Options:

• Vertical Duo or Full Glass Door
• Stainless Steel
• Safety Lock
• Flush Handle (optional above)
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C8113S21
C8113S21A
