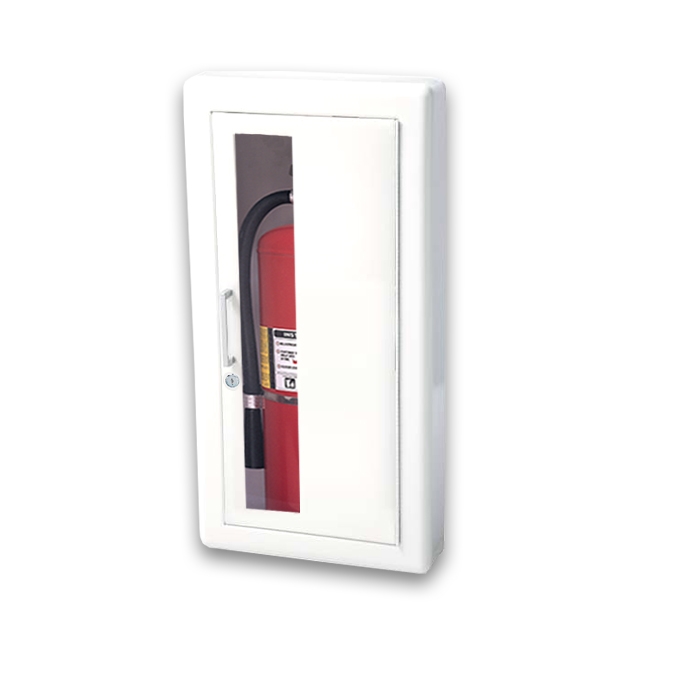

JL Ambassador 8117W10 is a semi recessed steel fire extinguisher cabinet with vertical duo clear acrylic glazing and a SAF-T-LOK™ keyed cylinder. The cabinet holds 2-1/2 lb. or 5 lb. fire extinguishers and features cold rolled steel construction with a white powder coat finish. The door and trim include 1-3/4" trim on the face and door, and the cabinet and handle protrude 3-3/4" from the wall surface. The cabinet is ADA compliant and Made in America.

The SAF-T-LOK™ can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered.

Submittal Sheet	Installation Instructions	Cross Reference
Specifications	Maintenance Instructions	Warranty
JL Catalog	Made In USA

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
9" x 18" x 5½"	12-3/8" x 21-3/8 " x 3-3/4"	10" x 19" x 3-1/8"	2 1/2, 5 lbs.

Available Options:

• Full Glass or Solid Door
• Stainless Steel

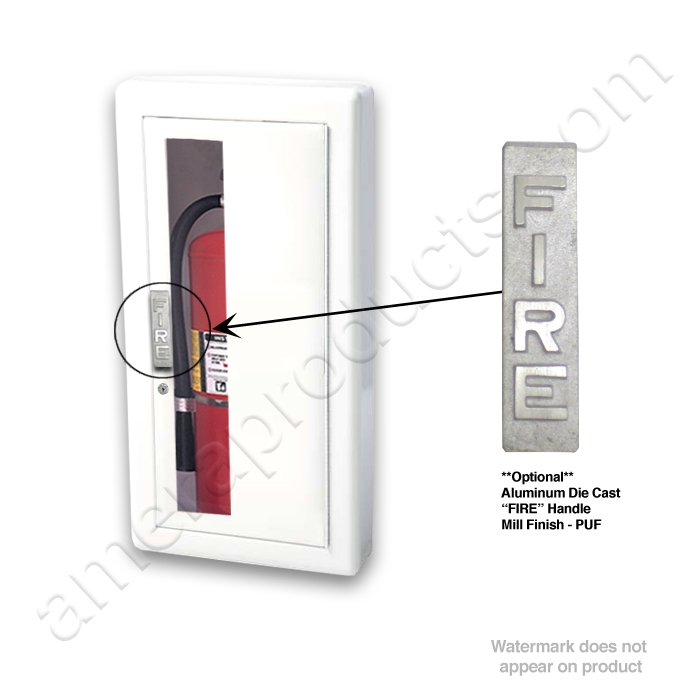

• Flush Handle
• Safety Lock
• Additional Tub Colors - Black or Red
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Alarm Systems

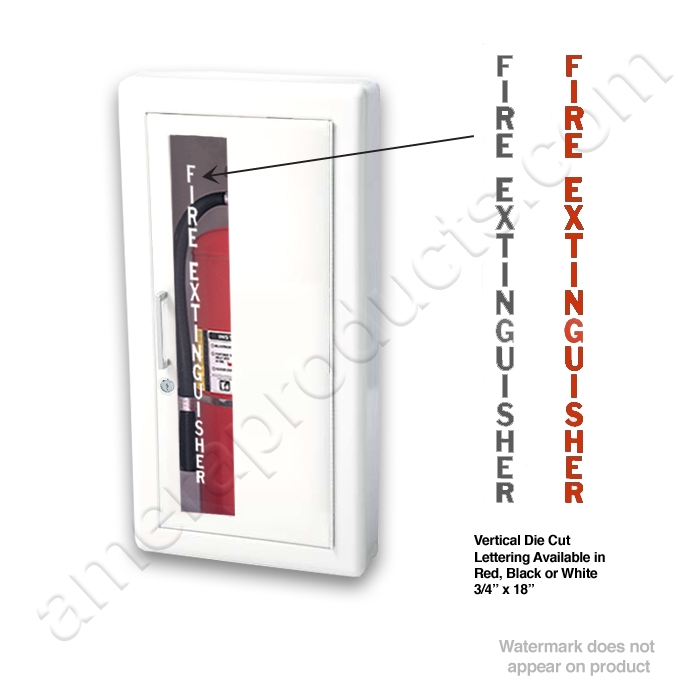

• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C8117W10
C8117W17
