  • Holds 5 lb, 10 lb, or 20 lb Fire Extinguishers
  • Full Glass Door - Clear Acrylic Glazing
  • "Fire Extinguisher" decal (optional above)
  • Clear Tempered Glass (optional above)
  • One Year Warranty
  • ADA Compliant
  • Made in America
10 Business Days

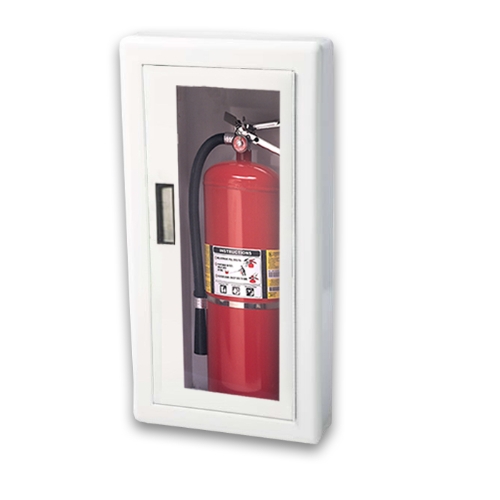

JL Ambassador 2012F10 Semi-Recessed 20 lbs. Fire Extinguisher Cabinet


The ambassador series is a durable, attractive steel cabinet with powder-coat finish that stands up to conditions in commercial buildings.  Door and Trim are cold rolled steel with white powder-coated finish.  The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch.  All models have 1-3/4" trim on face and door. The door is a Full Glass Style of clear acrylic glass. Semi-Recessed Cabinet and ADAC flush pull handle protrude 4" from the surface.  The tub is constructed of cold rolled steel with white powder-coat finish standard.

The 2012F10 comes with clear acrylic glazing standard.  The 2012F17 comes with clear tempered glass glazing (optional above)

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Wall Opening
W x H x D
Extinguisher Size
12" x 27" x 7-3/4 " 15-3/8" x 30-3/8 " x 4" 13 " x 28" x 4 1/8" 5, 10, 20lbs.



Available Options:

  • Full Glass or Solid Door
  • Stainless Steel
  • Safety Lock
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
  • Etched or Engraved Lettering in Glass or Metal
