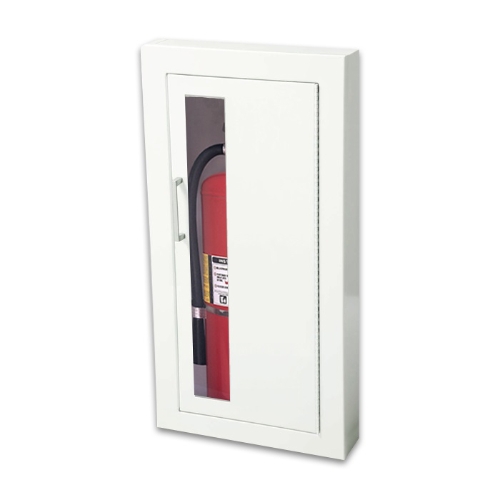

JL Ambassador 1016V10 is a semi recessed steel fire extinguisher cabinet with a vertical duo door and clear acrylic glazing. The cabinet accommodates 2-1/2 lb., 5 lb., or 10 lb. fire extinguishers and features 1-1/2" square trim, cold rolled steel door and trim with a white powder coat finish, a continuous hinge, zinc plated handle, and roller catch. The standard pull handle can be replaced with a Futura “Fire” Handle Cast Aluminum (optional above) or the ADAC Recessed Pull Handle (optional above). The cabinet protrudes 1-1/2" from the wall surface, with the standard handle extending an additional 5/8". The 1016V10 includes a one year warranty and is ADA compliant.

The 1016V10 comes with clear acrylic glazing standard.
The 1016V17 comes with clear tempered glass glazing (optional above)

Submittal Sheet	Installation Instructions	Cross Reference
Specifications	Maintenance Instructions	Warranty
JL Catalog	Made In USA

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
10-1/2" x 24" x 6"	13-7/8" x 27-3/8" x 1-1/2"	11-1/2" x 25" x 4-5/8"	2 1/2, 5, 10 lbs.

Available Options:

• Vertical Duo or Solid Door
• Stainless Steel
• Safety Lock
• Flush Handle
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C1016V10
C1016V10A
C1016V10LH
C1016V17
C1016V17A
C1016V17LH
