  • Holds up to 20 lbs. Fire Extinguishers
  • Vertical Duo Doo - Clear Acrylic Glazing
  • Aluminum Cabinet
  • SAF-T-LOK ™ (included)
  • Clear Tempered Glass (optional above)
  • "Fire Extinguisher" decal (optional above)
  • Die Cast "Fire" Handle (optional above)
  • One Year Warranty
  • ADA Compliant
  • Made in America
Lead-Time
20 Working Days

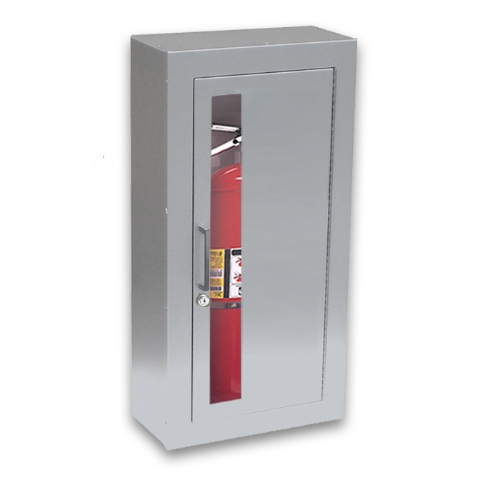

JL Academy Aluminum 2023W10 Surface Mounted 20 lbs. Fire Extinguisher Cabinet with Lock

Description

The Academy Series is a Durable, Attractive Aluminum Cabinet that Stands up to Conditions in Commercial Buildings. Door and Trim are clear anodized aluminum. Cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. All models have 1-3/4" trim on face and door. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. Surface mounted has a square edge and vertical duo door glazing. Cabinet and handle protrude 7-1/4" from the surface.Surface mounted tub is aluminum. Holds up to a 20 pound fire extinguisher.

The 2023W10 comes with clear acrylic glazing standard. The 2023W17 comes with clear tempered glass glazing (optional above)

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Extinguisher Size
15-3/16" x 30-3/16" x 8-1/4" 15 3/8" x 30 3/8 " x 7-1/4" 2½, 5, 10, 20 lbs.

Available Options:

  • Full Glass or Solid Door
  • Stainless Steel
  • Flush Handle
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Anodized Color Finishes - Dark Bronze
  • Etched or Engraved Lettering in Glass or Metal

JL Industries a division of Activar Construction Products Group, Inc. Model C2023W10
JL Industries a division of Activar Construction Products Group, Inc. Model C2023W17
