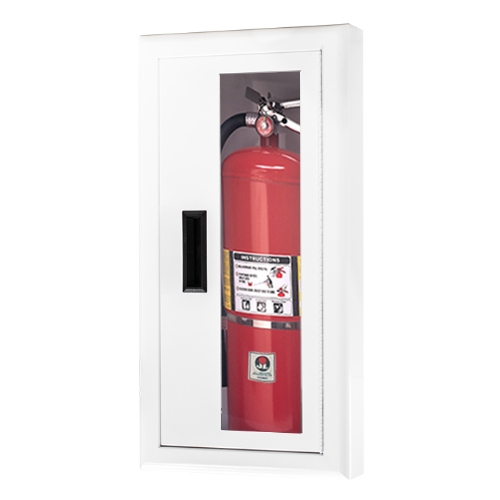

The JL Industries 2119F10A  Orbit series features a low profile tub to accommodate the Orbit FE10V Fire Extinguisher to be ADA compliant as a surface mounted cabinet. Door and Trim are cold rolled steel with white powder coated finish. The cabinet doors are attached with a continuous hinge and roller catch. The door comes with full panel of clear acrylic glazing. Comes with a flush pull handle. The tub is constructed of cold rolled steel with white powder coat finish standard. Extinguisher rests on a 1" high shelf.

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H	Extinguisher
15-3/8" x 30-3/8" x3-1/8"	15-3/8" x 30-3/8"	Orbit FE10V

Available Options:

• Vertical Duo or Solid Door
• Stainless Steel, Aluminum, Bronze, Brass
• FX2 Fire Rated
• Safety Lock
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms/td>	Locks Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Model C2119F10A
