  • JL Industries 2115L24
  • Fully Recessed Fire Extinguisher Cabinet
  • Holds JL Industries Orbit FE10V Fire Extinguisher
  • Fits into a Standard 3-5/8" Stud Wall
  • Solid Door with No Handle
  • SAF-T-LOK™ Keyed Cylinder Lock
  • "Fire Extinguisher" decal (optional above)
  • One Year Warranty
  • ADA Compliant
  • Made in America

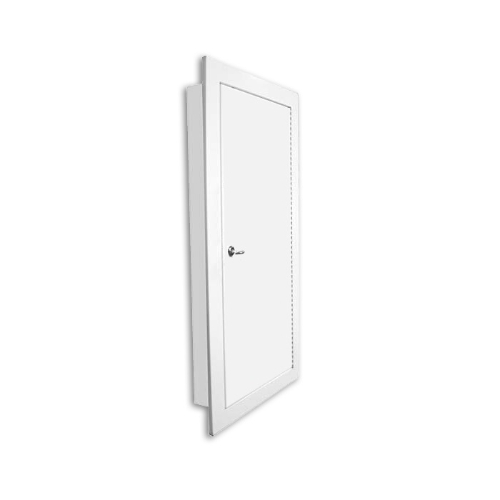

JL Orbit 2115L24 Low Profile Recessed 10 lbs. Fire Extinguisher Cabinet with Lock and No Handle


The JL Industries 2115L24  Orbit Series Feature a Low Profile Tub to Accommodate the Orbit FE10V Fire Extinguisher to Fit into a Standard 3-5/8" Stud Wall. Door and Trim are cold rolled steel with white powder-coated finish.  The cabinet doors are attached with a continuous hinge and lock.  Recessed flat with 3/8" trim. Solid Door Glazing. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock.  This deters theft and vandalism and allows quick access to the extinguisher.  Replacement cams can be ordered.  ADA Compliant.  The tub is constructed of cold rolled steel with white powder-coat finish standard. Extinguisher rests on a 1" high shelf.

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H
Wall Opening
W x H x D
12" x 27" x 3-1/4" 15-3/8" x 30-3/8" 13" x 28" x 3-1/8" Orbit FE10V


Available Options:
  • Vertical Duo or Full Glass
  • Stainless Steel, Aluminum, Bronze, Brass
  • FX2 Fire Rated
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
  • Etched or Engraved Lettering in Glass or Metal


JL Industries a division of Activar Construction Products Group, Inc. Model C2115L24
