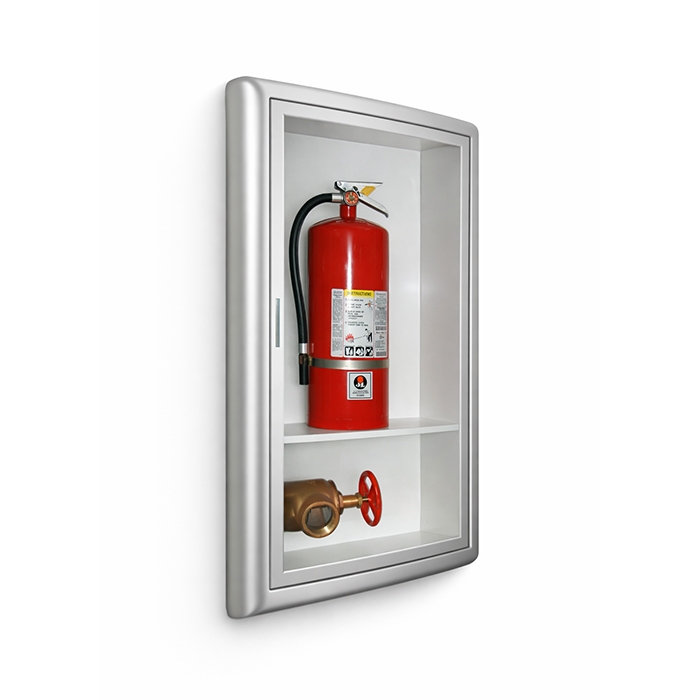

The JL Crownline C8027F10 aluminum semi recessed fire extinguisher and valve cabinet is a combination fire protection cabinet designed to house a 2.5 lb., 5 lb., 6 lb., or 10 lb. fire extinguisher and includes factory knockouts for fire department valve piping.  This aluminum cabinet features a full view (full glass) door with clear acrylic glazing.  The recessed design provides a clean architectural appearance while maintaining convenient emergency access for commercial, institutional, and industrial applications.

Submittal Sheet	Installation Instructions	Door Styles
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Valve and Fire Hose Cabinet
Interior Tub Size W x H x D	Overall Outside Trim W x H	Wall Opening W x H x D	Value Knockouts & Extinguisher Sizes
16" x 40 " x 9"	19-3/8" x 43-3/8 "	17" x 41" 8-7/8"	Fire Department Valve KOs 1-1/2" & 2-1/2" Fire Extinguishes 2.5lb. 5lb., 6lb, and 10lb.

Available Options:

• Custom Sizes Available
• Glazing: Clear Tempered Glass, Clear Wired Glass,
  Bronze Acrylic, Gray Acrylic, Clear Laminated Safety Glass
• Tempered Glass
• Vertical Duo or Solid Door
• Stainless Steel
• White Powder Coated Steel
• Safety Lock
• Trimless
• Fire Rated
• Alarm Systems
• Magnetic Catch
• Aluminum Finishes
• ADAC Recessed Flush Pull Handle
• Etched or Engraved Lettering in Glass or Metal

Color Chart	Tub Finishes	Fire Hose and Rack Assembly
Alarms	Locks & Pulls	Color Finishes

JL Industries a division of Activar Construction Products Group, Inc. Model C8027F10
