  • Holds 2½ lbs., 5 lbs. or 6 lbs. Fire Extinguishers
  • Vertical Duo Door - Clear Acrylic Glazing
  • "Fire Extinguisher" decal (optional above)
  • Die Cast "Fire" Handle (optional above)
  • Chrome Pull Handle (optional above)
  • ADAC Flush Pull Handle (optional above)
  • Clear Tempered Glass (optional above)
  • One Year Warranty
  • ADA Compliant
  • Made in America
3 Working Days

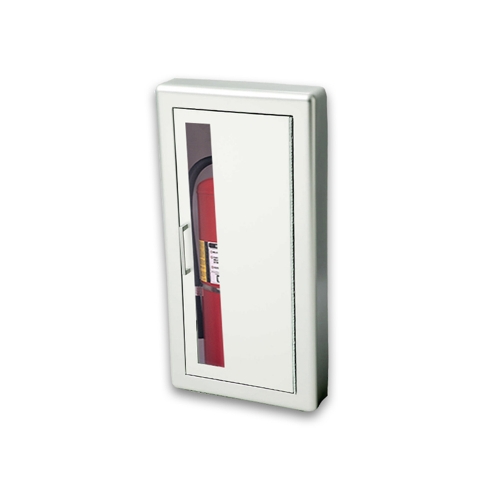

JL Academy Aluminum 1827V10 Semi-Recessed 5 lbs. Fire Extinguisher Cabinet


The Academy Series is a Durable, Attractive Aluminum Cabinet that Stands up to Conditions in Commercial Buildings. Door and Trim are clear anodized aluminum.  Cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch.  All models have 1-3/4" trim on face and door. Semi-Recessed 3" Rolled trim. The door comes with a full panel of clear acrylic glass. Cabinet and handle protrude 3-3/4" from the surface. The tub is constructed of cold rolled steel with white powder-coat finish.

The1827V10 comes with clear acrylic glazing standard.  The 1827V17 comes with clear tempered glass glazing (optional above).



Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Wall Opening
W x H x D
10-1/2" x 24 " x 5-1/2" 13-7/8" x 27-3/8 " x 3" 11-1/2" x 25" x 2-5/8" 2½ or 5 lbs.

Available Options:
  • Full Glass or Solid Door
  • Stainless Steel
  • Safety Lock
  • Flush Handle
  • Additional Tub Colors
  • Alarm Systems
  • Additional Anodized Color Finishes - Lt. Bronze, Medium Bronze and Dark Bronze
  • Etched or Engraved Lettering in Glass or Metal

JL Industries a division of Activar Construction Products Group, Inc. Model C1827V10

JL Industries a division of Activar Construction Products Group, Inc. Model C1827V17
