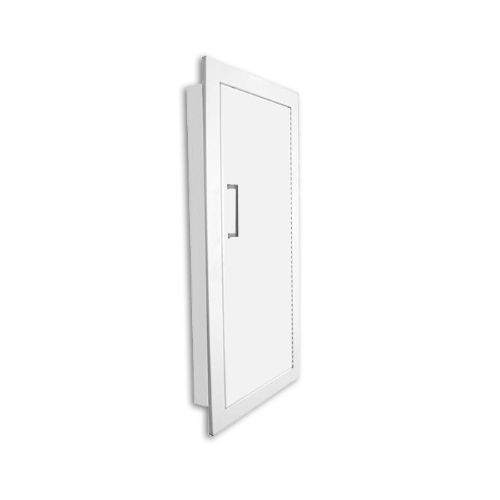

The JL Industries 2115S21 Orbit Series feature a low profile tub to accommodate the Orbit FE10V Fire Extinguisher to fit into a standard 3-5/8" Stud Wall. Door and Trim are cold rolled steel with white powder coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch. Recessed flat with 3/8" trim. Solid Door Glazing. Handle protrudes 5/8" from the surface. ADA Compliant. The tub is constructed of cold rolled steel with white powder coat finish standard. Extinguisher rests on a 1" high shelf.

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Available Options:

• Vertical Duo or Full Glass
• Stainless Steel, Aluminum, Bronze, Brass
• FX2 Fire Rated
• Safety Lock
• Flush Handle
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Model C211521
