  • Holds 2½ lb or 5 lb Fire Extinguishers
  • Stainless Steel
  • 1½ Square Trim Style
  • With Safety Lock
  • Vertical Duo Glass Door - Clear Acrylic Glazing
  • "Fire Extinguisher" decal (optional above)
  • Die Cast "Fire" Handle (optional above)
  • One Year Warranty
  • ADA Compliant
  • Made in America

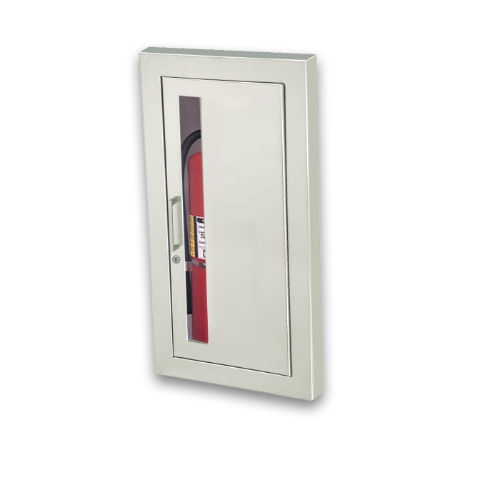

JL Cosmopolitan Stainless Steel 1836W10 Semi-Recessed 5 lbs. Fire Extinguisher Cabinet with Lock


The Cosmopolitan Series is a Modern, Clean Look Stainless Steel Cabinet. Door and Trim are #4 stainless steel. 1 1/2 Square trim style cabinet doors have a 5/8" door stop and are attached by a continuous hinge with a zinc-plated handle and SAF-T-LOK™. All models have 1-3/4" trim on face and door. The door is vertical duo style and is made of clear acrylic glass. Cabinet and handle protrude 1-1/8 " from the surface. The tub is constructed of cold rolled steel with white powder-coat finish standard.

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Wall Opening
W x H x D
Extinguisher Size
10½" x 24" x 5½" 13-7/8" x 27-3/8 " x 1½" 11½" x 25" x 4 1/8" 2½, 5, or 6 lbs.

Available Options:

  • Full Glass or Solid Door
  • Flush Handle
  • Additional Stainless Steel Finishes
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Etched or Engraved Lettering in Glass or Metal

JL Industries a division of Activar Construction Products Group,

Inc. Model C1836W10
