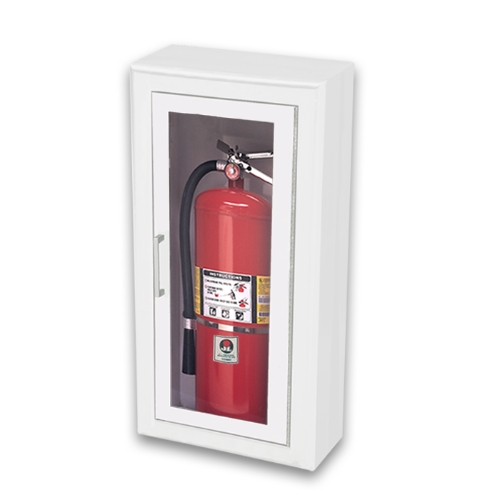

The Ambassador Series is a durable, attractive steel cabinet with Powder Coat Finish that stands up to conditions in commercial buildings. Door and Trim are cold rolled steel with white powder coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch. All models have 1-3/4" trim on face and door. Surface mounted with rolled edge. The door comes with full panel of clear acrylic glass. Cabinet and handle protrude 7-1/4 " from the surface. The tub is constructed of cold rolled steel with white powder coat finish standard.

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Extinguisher Size
13-11/16" x 27-3/16 " x 6-1/2"	13-7/8" x 27-3/8 " x 7-1/4"	2½, 5, 10 lbs.

Available Options:

• Vertical Duo or Solid Door
• Stainless Steel
• Safety Lock
• Flush Handle
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Model C1019F10
