Quantity:
  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Solid Door Glazing
  • Surface Mounted Rolled Edge
  • SAF-T-LOK™ - Keyed Cylinder Lock
  • "Fire Extinguisher" decal (optional above)
  • Futura “Fire” Handle
    Cast Aluminum (optional above)
  • ADAC Recessed Pull Handle (optional above)
  • One Year Warranty
  • Made in America

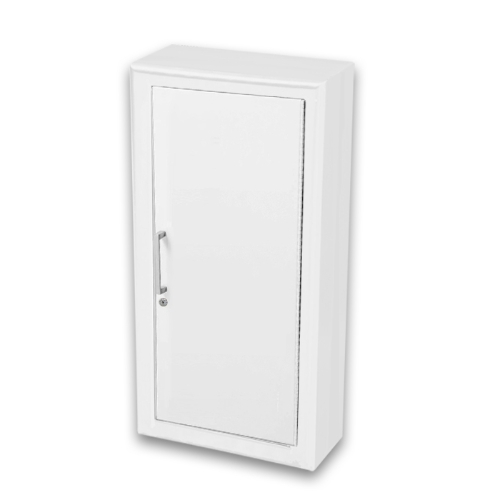

JL Ambassador 1019L22 Rolled Edge Surface Mounted 10 lbs. Fire Extinguisher Cabinet with Lock

Description

The Ambassador Series is a Durable, Attractive Steel Cabinet with Powder-coat Finish that Stands up to Conditions in Commercial Buildings. Door and Trim are cold rolled steel with white powder-coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. All models have 1-3/4" trim on face and door. Surface mounted with rolled edge. The door comes with full panel of clear acrylic glass. Solid Door Glazing. Cabinet and handle protrude 7-1/4 " from the surface. The tub is constructed of cold rolled steel with white powder-coat finish standard.

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Extinguisher Size
13-11/16" x 27-3/16 " x 6-1/2" 13-7/8" x 27-3/8 " x 7-1/4" 2½, 5, 10 lbs.


Available Options:

  • Vertical Duo or Full Glass
  • Stainless Steel
  • Flush Handle
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
  • Etched or Engraved Lettering in Glass or Metal

JL Industries a division of Activar Construction Products Group, Inc. Model C1019L22
