  • Holds 2½ lb, 5 lb Fire Extinguishers
  • Full Glass Door - Clear Acrylic Glazing
  • "Fire Extinguisher" Decal or Lettering (optional above)
  • Die Cast "Fire" Handle (optional above)
  • All Aluminum Costruction
  • One Year Warranty
  • Made in America

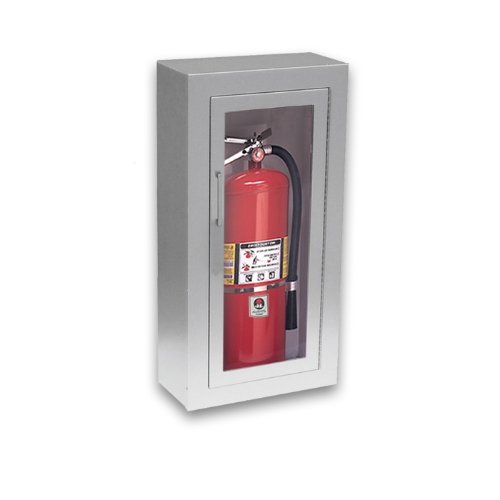

JL Academy Aluminum 8123F10 Surface Mounted 5 lbs. Fire Extinguisher Cabinet


The Academy Series is a Durable, Attractive Aluminum Cabinet that Stands up to Conditions in Commercial Buildings. Door and Trim are clear anodized aluminum. Cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. All models have 1-3/4" trim on face and door. Surface mounted has a square edge. The door comes with a full panel of clear acrylic glass. Cabinet and handle protrude 7-1/4" from the surface. Surface Mounted tub is aluminum.

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H x D
Extinguisher Size
12-3/16" x 21-3/16 " x 6" 12-3/8" x 21-3/8 " x 7-1/4" 2½, 5 lbs.

Available Options:

  • Vertical Duo or Solid Door
  • Stainless Steel
  • Safety Lock
  • Flush Handle
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Additional Anodized Color Finishes - Lt. Bronze, Medium Bronze and Dark Bronze
  • Etched or Engraved Lettering in Glass or Metal
