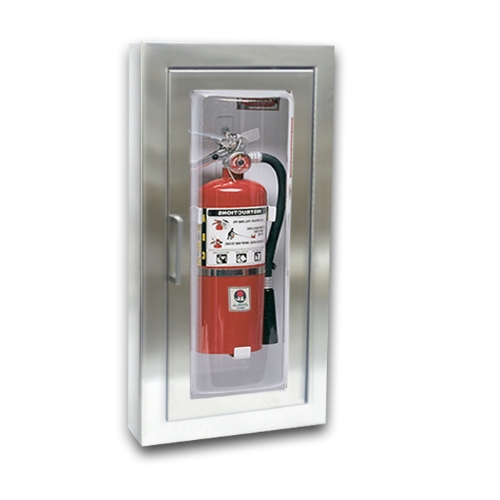

The JL Industries 1536F25 Clear VU Series is an attractive bubble cabinet made of Stainless Steel with an acrylic bubble on front of cabinet for extinguisher visibility. Semi-Recess Mounted with 1-1/2" Square Edge Trim. The Bubble extends 2-1/2" projection. Cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. The tub is constructed of cold rolled steel with white powder coat finish standard.

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog	Stainless Finish Options

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
10-1/2"x 24" x 4"	13-7/8"x 27-3/8 " x 4"	11-1/2"x 25" x 2-5/8"	2½, 5, 10 lbs.

Available Options:

• Aluminum, Steel, Bronze or Polished Brass
• Additional Bubble Colors - Bronze or Red
• SAF-T-LOK
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Model C1536F25
