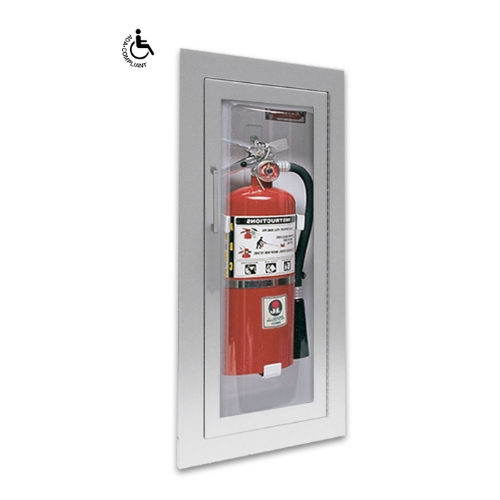

The JL Industries 1525F25 Clear VU Series is an attractive bubble cabinet made of aluminum with an acrylic bubble on front of cabinet for extinguisher visibility. Recess Mounted. The Bubble extends 2-1/2" projection. Cabinet doors are attached by a continuous hinge and equipped with zinc plated handle and roller catch. The tub is constructed of cold rolled steel with white powder coat finish. The 1525F25 comes with clear acrylic bubble glazing standard. The 1525F26 comes with red acrylic bubble glazing (optional above). The 1525F27 comes with bronze acrylic bubble glazing (optional above).

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog	Aluminum Finish Options

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H x D	Wall Opening W x H x D	Extinguisher Size
10-1/2" x 24 " x 4"	13-7/8" x 27-3/8 " x 2-1/2"	11-1/2" x 25" x 4"	2½, 5, 10 lbs.

Available Options:

• Stainless Steel, Aluminum, Bronze or Polished Brass
• Additional Bubble Colors - Bronze or Red
• SAF-T-LOK
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver

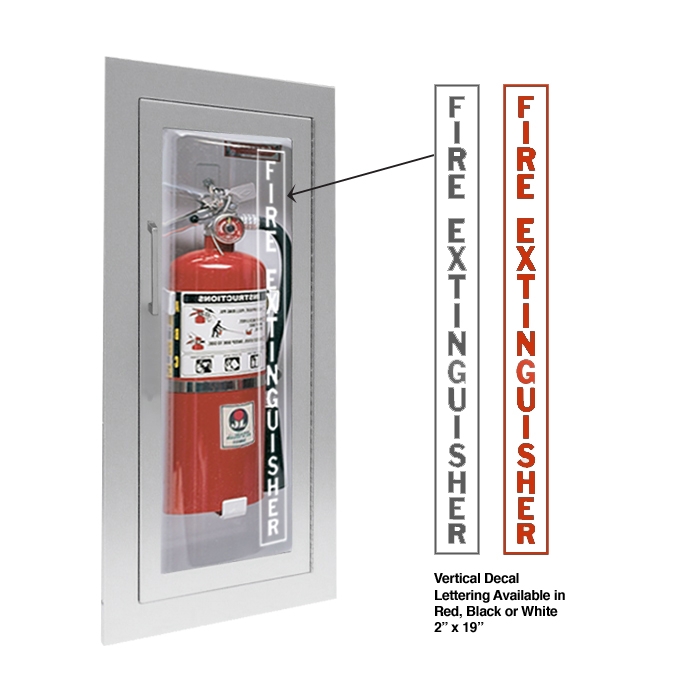

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Models:
C1525F25
C1525F26
C1525F27
