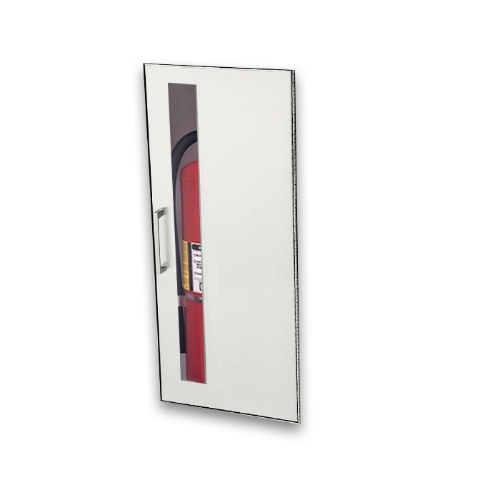

The Academy Series is a Durable, Attractive Aluminum Cabinet that Stands up to conditions in commercial buildings. Door is constructed of anodized aluminum finish. Flush cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. Recessed flanged will be concealed by plaster is 1-1/4" wide. Doors with glazing have 1-1/4" wide trim. The tub is constructed of cold rolled steel with silver powder coat finish standard. Tub includes a 1-1/4" wide flange to cover the wall opening and is designed to be concealed by plaster.

The 1024PWV10 comes with clear acrylic glazing standard. The 1024PWV17 comes with clear tempered glass glazing Optional Above

Submittal Sheet	Installation Instructions	Maintenance Instructions
Cross Reference	Specifications	Made In USA
Warranty	JL Catalog

Fire Extinguisher Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H	Wall Opening W x H x D	Extinguisher Size
10-5/8" x 24 " x 6"	13" x 26-1/2"	11-1/2" x 25" x 6-1/8"	2½, 5, 10 lbs.

Available Options:

• Full Glass or Solid Door
• Stainless Steel
• Cabinet with Recessed Trim for Drywall
• Safety Lock
• Flush Handle
• Additional Tub Colors - Black or Red
• Alarm Systems
• Etched or Engraved Lettering in Glass or Metal

Color Finishes	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Model 1024PWV10
JL Industries a division of Activar Construction Products Group, Inc. Model 1024PWV17
