  • Holds 2½ lb, 5 lb or 10 lb Fire Extinguishers
  • Designed to be Under Plaster
  • Flush Finished Surface
  • Solid Door Glazing
  • "Fire Extinguisher" decal (optional above)
  • Die Cast "Fire" Handle (optional above)
  • One Year Warranty
  • Made in America

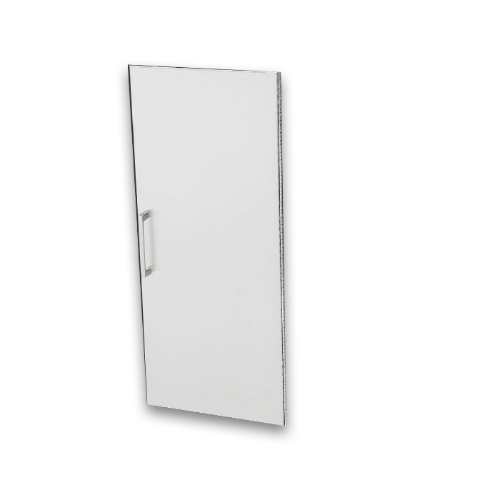

JL Academy Aluminum 1024PWS21 Trimless 10 lbs. Fire Extinguisher Cabinet for Plaster


The Academy Series is a Durable, Attractive Aluminum Cabinet that Stands up to Conditions in Commercial Buildings. Door is constructed of anodized aluminum finish. Flush cabinet doors are attached by a continuous hinge and equipped with zinc-plated handle and roller catch. Recessed flanged will be concealed by plaster is 1-1/4" wide. Doors with glazing have 1-1/4" wide trim. The tub is constructed of cold rolled steel with silver powder-coat finish standard. Tub includes a 1-1/4" wide flange to cover the wall opening and is designed to be installed under plaster.

Fire Extinguisher Cabinet Dimensions
Interior Tub Size
W x H x D
Overall Outside Trim
W x H
Wall Opening
W x H x D
Extinguisher Size
10-5/8" x 24 " x 6" 13" x 26-1/2" 11-1/2" x 25" x 6-1/8" 2½, 5, 10 lbs.

Available Options:

  • Vertical Duo or Full Glass
  • Cabinet with Recessed Trim for Drywall
  • Safety Lock
  • Flush Handle
  • Additional Tub Colors - Black or Red
  • Alarm Systems
  • Etched or Engraved Lettering in Glass or Metal

JL Industries a division of Activar Construction Products Group, Inc. Model 1024PWS21
