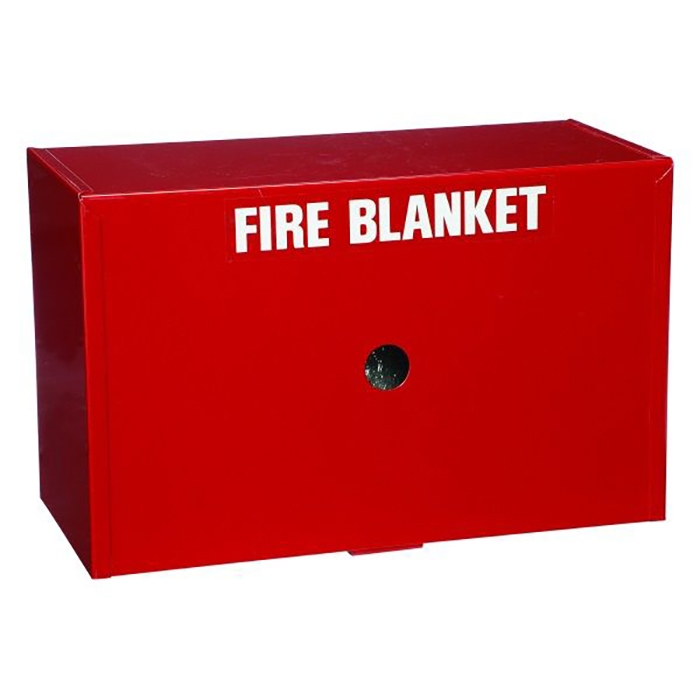

The JL Industries 9613S21 Royal™ Series horizontal fire blanket cabinet with fire blanket is a surface-mounted, horizontal “drop” style steel cabinet designed for quick access in commercial and institutional fire safety applications.  The cabinet houses a folded fire blanket and features a bottom mounted pull handle that opens the solid metal door, allowing the blanket to deploy downward for controlled use.

The included fire blanket is manufactured from a nominal 62" × 80" processed 70% wool / 30% synthetic blend, weighing approximately 2.75 lb., and complies with the Flammable Fabrics Act: Flammability of Clothing Textiles, Title 16, CFR 1610.  The cabinet is constructed of red epoxy-painted cold-rolled steel and includes zinc-plated pull handles with roller catches. Made in the USA.

Submittal Sheet	Specifications	Maintenance Instructions
Warranty	JL Catalog	Made In USA

Frequently Asked Questions (FAQs)

Q: What does “horizontal” mean for this fire blanket cabinet?
A: Horizontal refers to the cabinet orientation and deployment method, where the fire blanket is stored in a horizontal cabinet and deploys downward when the bottom-mounted handle opens the door.

Q: Is this cabinet surface mounted or recessed?
A: The JL Industries 9613S21 is a surface-mounted fire blanket cabinet designed for wall installation.

Q: What standard does the included fire blanket meet?
A: The included fire blanket complies with the Flammable Fabrics Act: Flammability of Clothing Textiles, Title 16, CFR 1610.

Q: Is this the same as the 9519S21 model?
A: No. The 9613S21 is a horizontal fire blanket cabinet, while the 9519S21 is a vertical Royal™ Series fire blanket cabinet.


JL Industries Fire Blanket Cabinets – All Series


JL Industries a division of Activar Construction Products Group, Inc.
Model C9613S21
