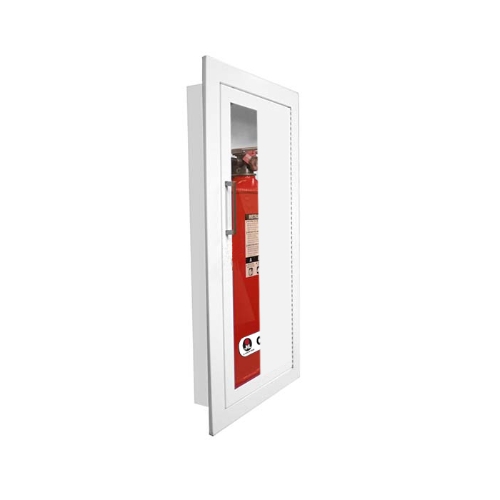

The JL Industries 2115V10-FX2  Orbit Series Feature a low profile Tub to accommodate the Orbit FE10V Fire Extinguisher to fit into a standard 3-5/8" Stud Wall. Door and Trim are cold rolled steel with white powder coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch. Recessed flat with 3/8" trim. The door is Vertical Duo Style door glazing. Handle protrudes 5/8" from the surface. ADA Compliant. The tub is constructed of cold rolled steel with white powder coat finish standard. Extinguisher rests on a 1" high shelf.

Fire-Rating: Fire-FX2™ cabinets are fabricated in accordance with the UL label for one and two hour combustible and non-combustible wall system building codes. The fire testing has met the requirement of ANSI/UL 1479 (ASTM –E814) and ULC/CAN S115 for membrane and penetration firestops. Installation instructions must be strictly adhered to in order to obtain the fire rating.The installation of any fire-rated cabinet which lacks a cabinet door or a condition in which the door is left ajar, will void the fire rating.

Submittal Sheet	Installation Instructions	FX-FX2 Flyer
Maintenance Instructions	Specifications	Made In USA
Cross Reference	JL Catalog	Warranty

Available Options:

• Full Glass or Solid Door
• Stainless Steel, Aluminum, Bronze, Brass
• Safety Lock
• Flush Handle
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Model C2115V10-FX2
