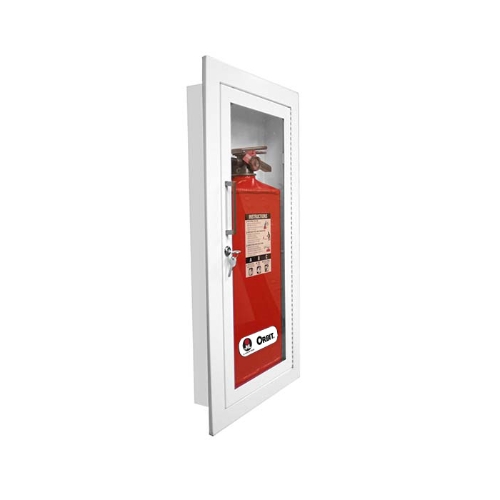

The JL Industries 2115G10-FX2  Orbit Series Feature a Low Profile Tub to accommodate the Orbit FE10V Fire Extinguisher to fit into a Standard 3-5/8" Stud Wall. Door and Trim are cold rolled steel with white powder coated finish. The cabinet doors are attached with a continuous hinge and equipped with zinc-plated handle and roller catch. Recessed flat with 3/8" trim. The door comes with full panel of clear acrylic glass. Comes with SAF-T-LOK™ theft-deterrent keyed cylinder lock. This lock can be used instead of a break glass lock lever. Cabinets with SAF-T-LOK™ lock appear to be locked and in fact are, but the door can be opened with a sharp pull which breaks the replaceable plastic cam. This deters theft and vandalism and allows quick access to the extinguisher. Replacement cams can be ordered. Handle protrudes 5/8" from the surface. ADA Compliant. The tub is constructed of cold rolled steel with white powder coat paint finish standard. Extinguisher rests on a 1" high shelf.

Fire-Rating: Fire-FX2™ cabinets are fabricated in accordance with the UL label for one and two hour combustible and non-combustible wall system building codes. The fire testing has met the requirement of ANSI/UL 1479 (ASTM –E814) and ULC/CAN S115 for membrane and penetration firestops. Installation instructions must be strictly adhered to in order to obtain the fire rating.The installation of any fire-rated cabinet which lacks a cabinet door or a condition in which the door is left ajar, will void the fire rating.

Submittal Sheet	Installation Instructions	FX-FX2 Flyer
Maintenance Instructions	Specifications	Made In USA
Cross Reference	JL Catalog	Warranty

Available Options:

• Vertical Duo or Solid Door
• Stainless Steel, Aluminum, Bronze, Brass
• Flush Handle
• Additional Tub Colors - Black or Red
• Alarm Systems
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Door Styles	Decals
Alarms	Locks & Pulls	Tub Finishes

JL Industries a division of Activar Construction Products Group, Inc. Model C2115G10-FX2
