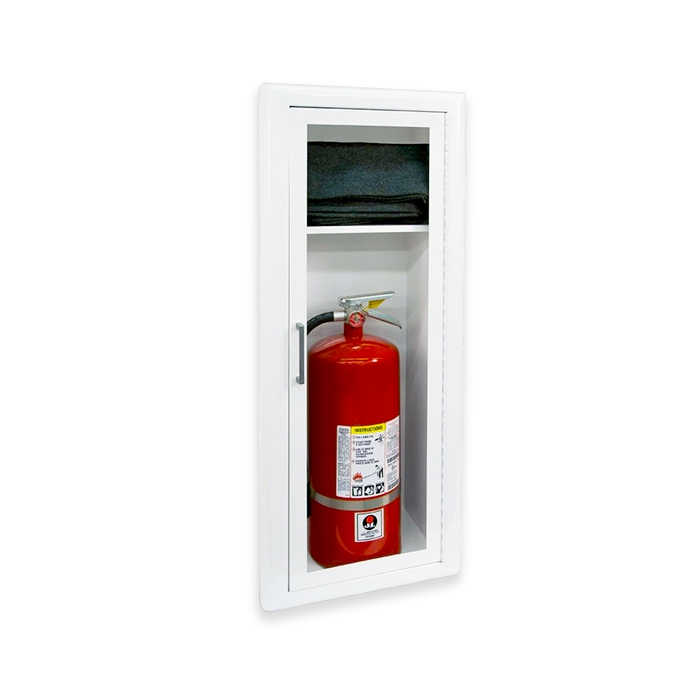

The JL Industries 3617F10 Royal® 3600 Series semi recessed fire extinguisher and
blanket cabinet with fire blanket is a semi recessed, steel cabinet designed to
provide dual emergency fire protection by housing both a fire extinguisher and
an integrated fire blanket within a single enclosure. This Royal® Series
cabinet features a full-glazed door with pull handle, durable rolled-edge trim,
and a dedicated upper shelf that positions the fire blanket above the
extinguisher for fast, intuitive access during an emergency.
The 3617F10
comes with clear acrylic glazing standard. The 3617F17 comes with clear
tempered glass glazing (
optional above).
Constructed of
cold-rolled steel with a white powder-coat finish, the 3617F10 is engineered for
commercial and institutional installations where code compliance, durability,
and clean architectural appearance are required. The included fire blanket
meets the Flammable Fabrics Act (Title 16 CFR 1610), and the semi recessed design
supports ADA-compliant configurations when specified. Manufactured in the
United States by JL Industries, this cabinet is compatible with a range of
standard fire extinguishers and is well suited for chemistry labs, STEM
classrooms, vocational training rooms, and university research labs.
|
Fire Extinguisher Cabinet Dimensions |
Interior Tub
Size
W x H x D |
Overall
Outside Trim
W x H x D |
Wall Opening
W x H x D |
Extinguisher
Size |
|
12" x 36 " x 8" |
15-3/8" x 39-3/8 " x 2-1/2" |
11½" x 25" 5-5/8" |
2½ to 10 lbs. |
Available Options:
- Vertical Duo or Solid Door
- Stainless Steel
- Aluminum
- Safety Lock
- Alarm Systems
- Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC
Flat Beige, Grey Primer, Bronze or Silver
- Etched or Engraved Lettering in
Glass or Metal
Frequently Asked Questions (FAQs)
Q:
Where are fire extinguisher and fire blanket combination cabinets typically
used?
A: They are most commonly used in school science labs,
STEM classrooms, healthcare and research laboratories, vocational training
areas, and other facilities where both incipient fires and clothing or surface
fires may occur.
JL Industries Fire Blanket Cabinets – All Series
JL
Industries a division of
Activar Construction Products Group, Inc. Models:
C3617F10
C3617F17
C3617F10A
C3617F17A
