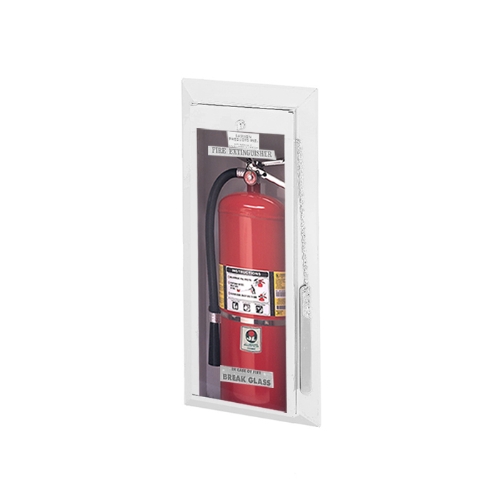

The Classic Series fire extinguisher cabinets are an economical choice for a durable, ADA complient, recess mount cabinet. This rust resistant fire extinguisher cabinet, tub and door frame, has a white or red powder coated galvanized steel finish with twin lock top cylinder lock which secures glazing against theft. This cabinet protrudes 2-3/4” which will allow the cabinet to be recessed into most walls with 3-3/4" minimum depth. The trim flange is 1½” wide to cover wall opening edges. The door is .060 acrylic front for protections from the elements. Comes with breaker bar and chain. Decal reads "In Case of Fire Break Glass".
Also available, as a surface mount (
optional above). Surface mounted has no trim. See the submittal sheet below.
|
Fire Extinguisher Cabinet Dimensions
|
Interior Tub Size
W x H x D |
Extinguisher Size |
| 8-1/2" x 19-3/4 " x 6-1/4" |
2½, 5, 6 lbs. |
The Classic Series Galvanized Fire Extinguisher Cabinet is comparative to:
- Strike First Model 100-CL
- Strike First Model 100-SR-CL
- JL Industries a division of Activar Construction Products Group, Inc. Model C9163Z30
- JL Industries a division of Activar Construction Products Group, Inc. Model C9163Z30R
- JL Industries a division of Activar Construction Products Group, Inc. Model C916AZ30
- JL Industries a division of Activar Construction Products Group, Inc. Model C916AZ30R
- Samson Products a division of Activar Construction Products Group, Inc. Model 99G
- Samson Products a division of Activar Construction Products Group, Inc. Model 99GT
JL Industries a division of Activar Construction Products Group, Inc. Models:
916AZ30
9163Z30R
9163Z30
9163Z30R
