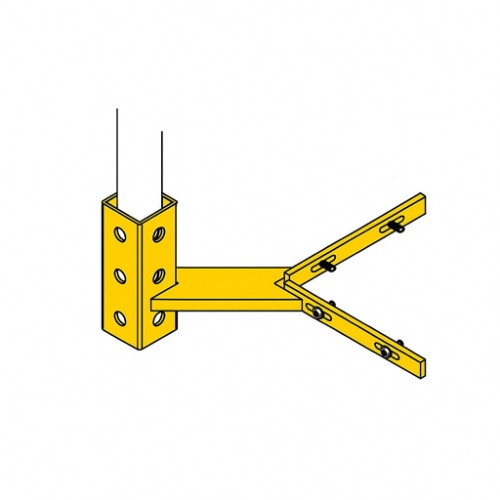

The JL 43227 Corner Mount Assembly for Bolt-on Safety Railing Series RSHWB is a
OEM part from JL Industries.
Parts for the JL
Industries Bolt-on Safety Railing Series RSHWB
|
| |
Part Number |
Description |
| 1 |
42845 |
Post, 4 Loop Assembly |
| 2 |
42849 |
Post, 2 Loop Assembly Hinge Side |
| 3 |
42852 |
Post, 2 Loop Assembly Latch Side |
| 4 |
43227 |
Corner Mount, Assembly, Bolt On |
| 5 |
42863 |
Hinge, Spring Loaded, 3-1/2" |
| 6 |
42864 |
Latch Pin, Bent, Right Hand Reverse |
| 7 |
42865 |
Bracket, Gate Latch |
| 8 |
43270 |
Gate, Hinge Side Assembly, Size 30"- 48" |
| 9 |
42860 |
Gate, Latch Side Assembly |
| 10 |
42866 |
Latch Catch |
| 11 |
RS-PSX51 |
Railing, 51" |
| 12 |
RS-PSX45 |
Railing, 45" |
| 13 |
1FSSE-XHH-0C1302C-PT |
Bolt, 1/2"-13 X 2-1/2", Partial Thred |
| 14 |
1FNE-XHFH-0C13 |
Flange Nut, 1/2"-13 |
| 15 |
11P162 |
1-5/8" Plastic Round Insert |
| 16 |
1FSS8-HZ-0C130D |
Set Screw, 1/2"-13 |
| 17 |
1246 |
Screw Round Head Torx 1/4-20X3/4 Steel |
| 18 |
JLMXDR-DECAL |
Decal "JL / MAXAM / DUR-RED" for All |
JL Industries a division of Activar Construction Products Group,
Inc. P/N 43227
