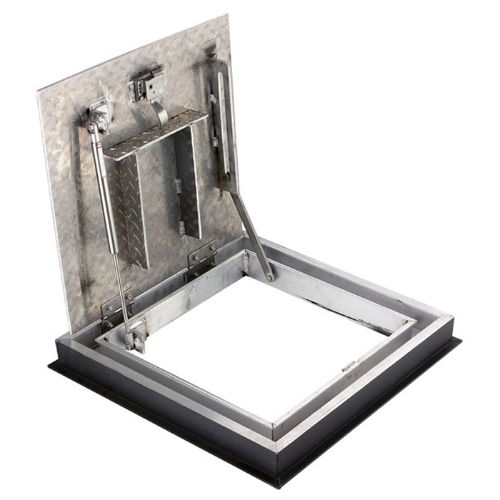

Model AAF is a fully recessed aluminum floor door to be installed flush with the surround floor surface. The door frames are an engineered gutter frame design in extruded aluminum shapes specifically designed for floor doors. The gutter is equipped with a 1-1/4" FTP drain coupling allowing for water runoff. The door is made from reinforced 1/4" diamond plate for greater strength. The door is hinged such that when open, the door does not penetrate the gutter, thus preventing problems due to freezing or contaminating buildup. The finish is mill with bituminous coating below grade. The load is 300 lbs. per square foot.
Floor Door Models |
| Door Size |
Model Number |
Doors | Clear Opening |
Rough Opening |
Weight |
| 24" x 24" | AAF-2424S | Single |
20.5" x 20.5 " |
28" x 28" |
60 lbs. |
| 24" x 36" | AAF-2436S | Single |
20.5" x 32.5 " |
28" x 40 |
76 lbs. |
| 30" x 30" | AAF-3030S | Single |
26.5" x 26.5" |
34" x 34" |
81 lbs. |
| 36" x 36" | AAF-3636S | Single |
32.5" x 32.5" |
40" x 40" |
100 lbs. |
| 30" x 48" | AAF-3048S | Single |
26.5" x 44.5" |
34" x 52" |
115 lbs. |
| 36" x 48" | AAF-3648S | Single |
32.5" x 44.5" |
40" x 52" |
118 lbs. |
| 42" x 42" | AAF-4242S | Single |
38.5" x 38.5" |
46" x 46" |
120 lbs. |
| 48" x 48" | AAF-4848D | Double |
44.5" x 44.5" |
52" x 52" |
154 lbs. |
| 48" x 60" | AAF-4860D | Double |
44.5" x 56.5" |
52" x 64" |
173 lbs. |
| 48" x 72" | AAF-4872D | Double |
44.5" x 68.5" |
52" x 76" |
208 lbs. |
| 60" x 60" | AAF-6060D | Double | 56.5" x 56.5" |
64" x 64" |
215 lbs. |
