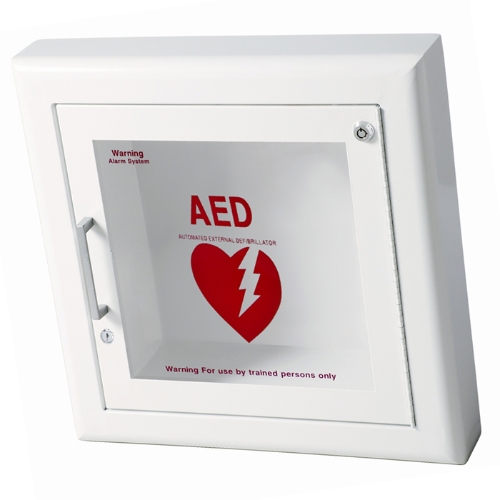

The 1400 series is designed to accommodate all Automated External Defibrillators (AED's) on the market today. This model 1417G12 is semi-recessed. Steel CRS with white powder-coat finish. 1-3/4" trim on face. Door is formed with 1-3/4" trim, mounted on a 5/8" door stop with zinc-plated handle and roller hatch with continuous hinge. View AED through a clear acrylic window. Standard AED Graphics included. 85 db Commander (audible) alarm standard. Surface-mount has a square edge. Tub is white powder-coated CRS.

The 1417G12 comes with clear acrylic glazing standard.  The 1417G17 comes with clear tempered glass glazing (optional above).

The 1400 Series comes with a 85 dB Commander (audible) alarm standard with keyed on/off switch on the door.  The 14MAG  magnetic door contact can be added to the existing alarm systems (optional above).  Magnetic door contact: N/O (normally open) or N/C (normally closed) 3-wire.  Magnetic contact can be installed in cabinet, and then wires can be connected to buildings security system (alarm system by others)


Submittal Sheet	JL AED Cabinet Parts	JL Emergency Catalog
JL Catalog	Specifications	Maintenance Instructions
Warranty	Made In USA	Installation Instructions

AED Cabinet Dimensions
Interior Tub Size W x H x D	Overall Outside Trim W x H	Wall Opening  W x H x D
14" x 14" x 6-3/4"	17-3/8" x 17-3/8"	15-1/4" x 15-1/4" x 3-3/4"

Glazing and Labeling (optional above)
Model Number	Application
Clr. Acr. / AED 1417G12	Clear Acrylic w/ AED Silk Screened Logo
Clr. Acr. / No Label 1417G10	Clear Acrylic, No Graphics
Glass/AED 1417G17	Tempered Glass AED Decals Included
Glass/AED 1417G17	Tempered Glass, AED Decals Not Applied
Acr/STB 1417G10-STB	Clear Acrylic Stop the Bleed Decals Included
Glass/STB 1417G17-ST  B	Tempered Glass Stop the Bleed Decals Included
Note: AED and Stop the Bleed decals are shipped loose for field application, except for the factory silk screened 1417G12.

Available Options:

• Fire Rated
• Stainless Steel
• Safety Lock
• Siren Strobe Alarm
• AED Signs
• Additional Tub Colors - Black or Red
• Custom Graphics - company logos, photos, etc.
• Bronze or Brass Finish
• Additional Cabinet Colors - Red, Black, Flat Black, Sand, AMS Beige, SC Flat Beige, Grey Primer, Bronze or Silver
• Etched or Engraved Lettering in Glass or Metal

Colors	Bronze or Brass Finish	AED Signs
Alarms	Custom Graphics

JL Industries a division of Activar Construction Products Group, Inc. Models:
C1417G12
C1417G17
C1417G12-14MAG
C1417G17-14MAG
C1417G12SA
C1417G17SA
C1417G12SA-14MAG
C1417G17SA-14MAG
