  • For Walls Only
  • Security Fire Rated Door
  • White Powder Coat Finish
  • Flush Continuous Piano Hinge
  • Outer Door 14 Gauge Steel, Inner Door 20 Gauge Steel
  • Self Closing
  • Fire Rated
  • Independently tested and labeled for 1-1/2 hours for wall applications
  • Mortise Lock (1-1/8 inch) Prep (optional above)
  • 1-1/8" Mortise Keyed Cylinder (optional above)
  • Made in America

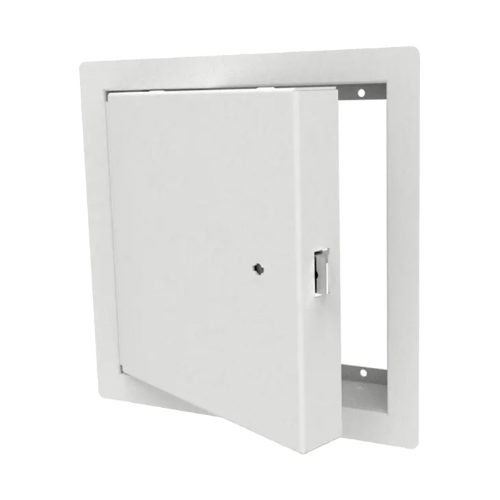

Babcock Davis BST - Security Fire Rated Access Doors For Walls Only

The Babcock-Davis BST Insulated Fire Rated Security Access Door is designed for Wall Use. Outer Door is Manufactured with 14 Gauge Steel, Inner Door is 20 Gauge Steel and Frame is constructed of 16 Gauge Steel. Door is a Self Closing Door with a spring for secure access. Choose from (K) Knurled Knob / Key Operated Latch Bolt  or (M) Mortise Lock (1-1/8") Prep  (optional above). Insulation is 2 inch Thick, Fire-Rated Mineral Wool.

Independently tested for Wall application only for 1-1/2 Hours.

This door is designed with a spring for secure self-closing wall applications.

Custom Sizes:
Custom sizes are available from 6 inches by 6 inches to 24 inches by 72 inches or 48 inches by 48 inches.

Shop Drawing Data Sheet Warranty
Specifications Installation & Maintenance Babcock Davis Catalog

Additional Options
  • Galvannealed
  • Type 304 Stainless Steel
  • Custom Sizes Available
  • Gasketing
Compare: Babcock-Davis BST to Nystrom, Inc. ST Models

Legacy Information

 Click here to view the detail sheet.
 Click here to view the info sheet.

Security Fire Rated Access Door Offering Added Level of Security in Wall Applications Only

Lead time for access panels with any non-standard options is two weeks.

The standard is to have the Mortis Cylinder Preparation made with the panel.  Since this is security panel, it would not make since to order the lack lock because it is not secure.
