  • Tank Type - Vertical
• Surface Mounted
• ADA Compliant
  • Stainless Steel - with Black ABS Plastic valve
• Liquid Soap - 40oz. capacity
• One Year Warranty

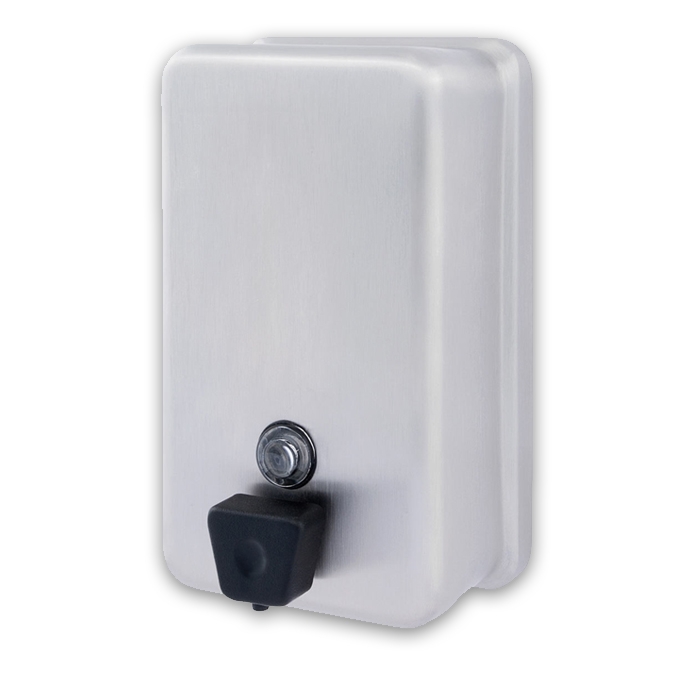

Bradley 6563 Surface Mounted Tank Type Vertical Valve Soap Dispenser


The Bradley 6563 surface mounted tank type vertical valve soap dispenser ideal for higher end hospitality and other commercial restrooms.  The black vavle is wider than other Bradley tank type dispenser valves, making it more comfortable to use.  The body is made of  20 gauge stainless steel with exposed surfaces in architectural satin finish that hides finger prints and some water drops.  The soap dispenser is surface mounted using stainless steel wall plate bracket and screws (included).  The bracket attached to the dispensers is 20 gauge stainless steel and is heliarc welded to the body.  The black ABS plastic soap valve allows the dispensers capacity of 40-oz. liquid soap to be pumped easily.  Push-in valve dispenses measured amount of vegetable or coconut oil liquid soaps, synthetic detergents, and antiseptic solutions with less than 5 lbs. of force.  Sight gauge indicates refill time.  Locked filler top opens with special key provided.

Surface-mounted liquid soap dispenser shall be fabricated of 20 gauge satin finish stainless steel.  Dispenser shall have completely concealed mounting, vandal-resistant filler hole cover and sight gauge.  Push-in corrosion-resistant liquid soap valve.  Capacity: 40-oz. liquid soap. Requires less than 5 lbs. of force to dispense soap.

Overall dimensions: 4 13⁄16"W x 8 3⁄16"H x 2 7⁄8"D.
