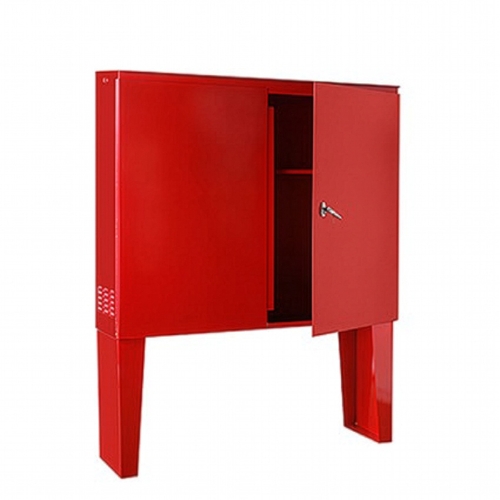

Outdoor Weatherproof Storage Fire Hose Cabinet
Cabinet is constructed of 16 gage. satin coat galvanized metal with two coats of red baked enamel. Stainless steel piano hinges with chrome plate door latches. Used to store fire hose and equipment in industrial environments. Used to store fire hose and equipment for outdoor use in industrial applications.
Technical Data |

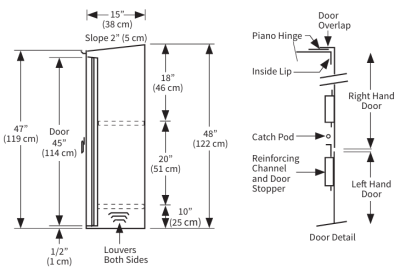

CAD Drawing |
Louvers on each end under bottom shelf
16 ga. galvanized steel sheet throughout
Door reinforcement at front, top and bottom
Chrome plated handle with 2 point catch
Empty shelves 13" wide with 3/4" lip
Doors overlap tub at hinge side
Two coats red baked enamel
Weighs approximately 260lbs |
Piano hinge on both doors
Door lock (R.H. door only)
Inside lips (front side)
3" at top 1 1/2" at bottom
1" at sides and bottom
Rain trough over doors
2" slope on roof
57" Wide |
