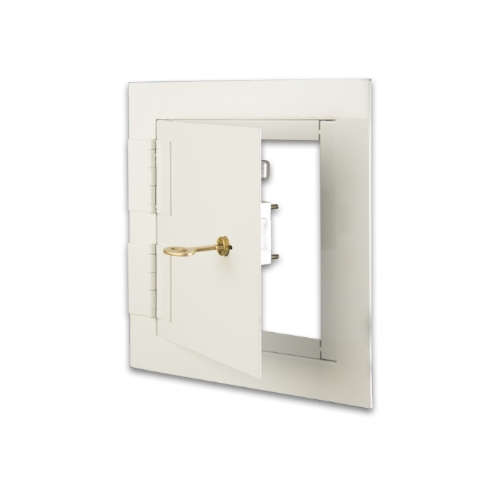

The DSB-123SD enables architects and institutions to bring maximum security to areas where access is required for repair or maintenance purposes.
Specifications
- Frame shall be 3/16" x 2" x 2" angle welded with joints ground smooth. Masonry anchor straps and ¼" mounting holes are included on all frames.
- Door shall be 10 gauge steel plate.
- Hinges shall be heavy duty and welded to door and frame.
- Locks shall be heavy duty detention type lock.
- Primer coated finish, color may vary
STANDARD SIZES:
|
H x W
|
Wall Opening
|
|
H x W
|
Wall Opening
|
| 12 x 12
|
12½ x 12½
|
|
24 x 24
|
24½ x 24½
|
| 16 x 16
|
16½ x 16½
|
|
36 x 24**
|
24½ x 36½
|
| 18 x 18
|
18½ x 18½
|
|
36 x 36**
|
36½ x 36½
|
|
** Doors larger than or equal to 36" are subject to oversize or LTL shipping charges.
|
