  • 16 Gauge Steel Frame
  • 1" Paintable Flange Trim
  • White Powder Coated Finish
  • Insulated Fire-Rated Access Panel for 2 Hour Wall Assemblies
  • 2" Thick Insulated 20 Gauge Steel Door/li>
  • Continuous Hinge
  • Universal Slam Latch
  • Spring-Assisted Door Closer
  • WWelded-on Masonry Anchors
  • UL Rated
  • UL10B, CAN/ULC-S104, ASTME152

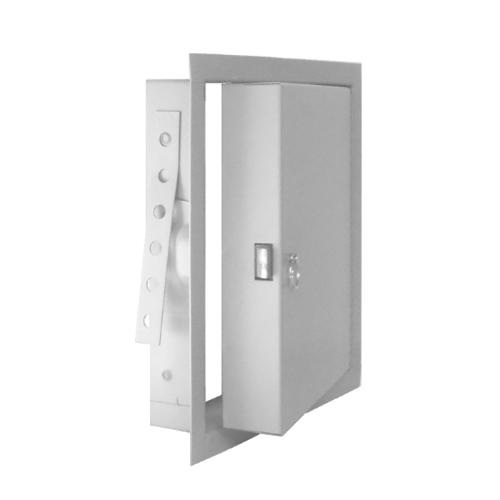

JL Industries FD Series Fire Rated Insulated Access Panel for Walls Various Sizes



Description

FD Series 2 Hour Fire Rated Flush, Insulated Access Panel for Walls meets testing standards: UL10B, CAN/ULC-S104, ASTME152.
Access Panels are rated 1-1/2 hours for 2 hour fire barriers for vertical surfaces up to 48" x 48". All Models feature a 2" thick insulated door, slam latch with spring-assisted closer and welded-on masnory andchors.
Frame & Trim: 16 gauge steel with a paintable 1" flange
Door: 2" Thick, insulated 20 gauge steel with continuous hinge, universal lock
Finish: White powder coat

 JL Catalog



Model FD Fire Rated Access Door

Model Size

W x H
Outside
Frame Dimensions

W x H

Opening Dimensions

W x H

Latch(es)
8" x 8"10" x 10"8-3/8" x 8-3/8"1
10" x 10"12" x 12"10-3/8" x 10-3/8"1
12" x 12"14" x 14"12-3/8" x 12-3/8"1
14" x 14"16" x 16"14-3/8" x 14-3/8"1
16" x 16"18" x 18"16-3/8" x 16-3/8"1
18" x 18"20" x 20"18-3/8" x 18-3/8" 1
20" x 20" 22" x 22" 20-3/8" x 20-3/8" 1
20" x 30"22" x 32"20-3/8" x 30-3/8" 2
22" x 22"24" x 24" 22-3/8" x 22-3/8" 1
22" x 30"24" x 32"22-3/8" x 30-3/8" 2
22" x 36"24" x 38"22-3/8" x 36-3/8" 2
24" x 24"26" x 26"24-3/8" x 24-3/8" 1
24" x 36"26" x 38"24-3/8" x 36-3/8" 2
24" x 48" 26" x 50"24-3/8" x 48-3/8" 2
30" x 30" 32" x 32" 30-3/8" x 30-3/8" 2
36" x 36" 38" x 38" 36-3/8" x 36-3/8" 2


Available Options:

  • Stainless Steel
  • Heavy Gauge Steel
  • Mortise Lock (U4)
  • Additional  Colors - Bronze, Red, Black, Flat Black, Sand, AMS Beige, SC Beige, Grey or Silver

JL Industries a division of Activar Construction Products Group, Inc. Model FD
