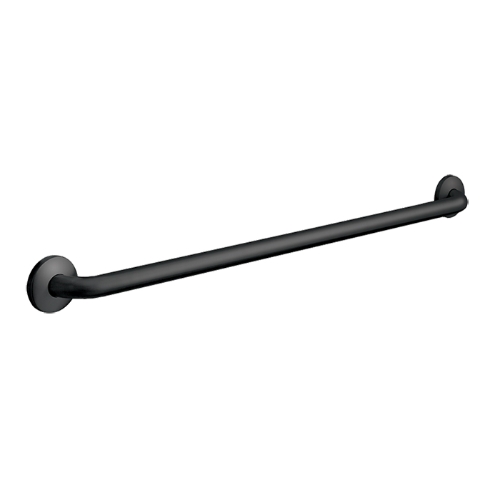

The ASI® 3801-xx-41 Series Grab Bars are concealed mounted with 1-1/2" O.D. All ASI® 3801-xx-41 Series grab bars meet ADA requirements when properly installed. Cover snaps over mounting flange dimples to conceal screws and concealed mounting flange with 2 screw holes and 3 locking dimples; 1/8" (3 mm) thick, Type 304 stainless steel. Cover is Type 304 stainless steel with a matte black powder coated finish and 22 gauge, 33/16" (81 mm) diameter.

ADA NOTICE: ADA compliant when installed in accordance with applicable ADA accessibility requirements.

Standard Sizes for ASI 3801-xx-41 Grab Bars
Part Number	Length	Technical Document
10-3801-18-41	18"	3801-18-41 Technical document
10-3801-24-41	24"	3801-24-41 Technical document
10-3801-36-41	36"	3801-36-41 Technical document
10-3801-42-41	42"	3801-42-41 Technical document
10-3801-48-41	48"	3801-48-41 Technical document

Grab Bar Configuration	Warranty	ASI® Catalog
Matte Black Collection	Product Care

American Specialties, Inc. Models:
10-3801-18-41
10-3801-24-41
10-3801-36-41
10-3801-42-41
10-3801-48-41
