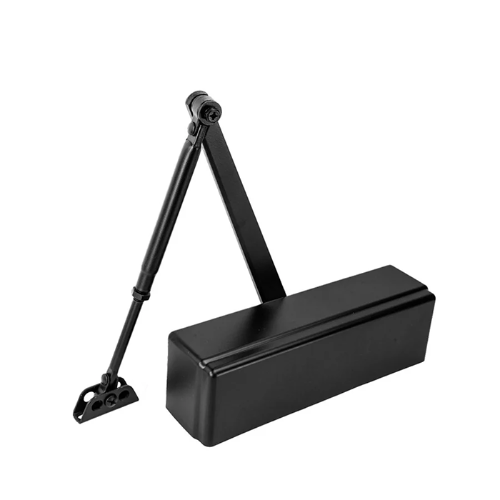

The Cal-Royal 300PBFCOV-L1 interior door closer black Grade 1 ADA is designed for interior light to medium weigh doors 30–185 lbs.  Featuring smooth hydraulic operation, this door closer has independent closing and latching speed control, adjustable back-check, and a full plastic cover.  This door closer has a universal mounting pattern compatible with Norton, Yale, and Dorma templates, it installs easily for regular, top-jamb, or parallel-arm applications.


Packaging Includes parallel bracket, machine screws and self-tapping wood screws, and full cover.  See the Cal-Royal 300 Series Accessories document bellow for additional parts and accessories need for other types of installations.

Cal-Royal 300 Series	300PBFCOV Installation Instructions
Cal-Royal 300 Series Catalog	Cal-Royal 300 Series Accessories
Cal-Royal Cross Reference	Warranty

Cover Dimensions: 2 5/8"d x 3"h x 10 1/8"w

Meets Standards for Commercial Buildings:

• UL Listed 3 Hour Fire Rated when installed on a Commercial Fire Rated Door
• Passes UL10C and UBC7-2-1997 for Modern Building Codes
• ANSI Standard A156.4 Grade 1
• BHMA Certified

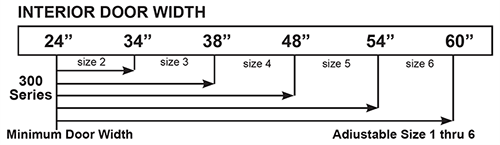

Size Guide

Actual colors may vary
Cal-Royal 300 Series Finish Options
Alum (Aluminum)	Gold
Duro (Bronze)	L1 (Black)
US3 (Polished Brass)

Cal-Royal Products, Inc. Model: 300PBFCOV-L1
