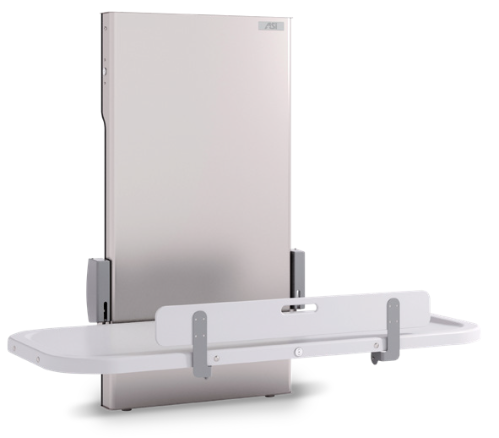

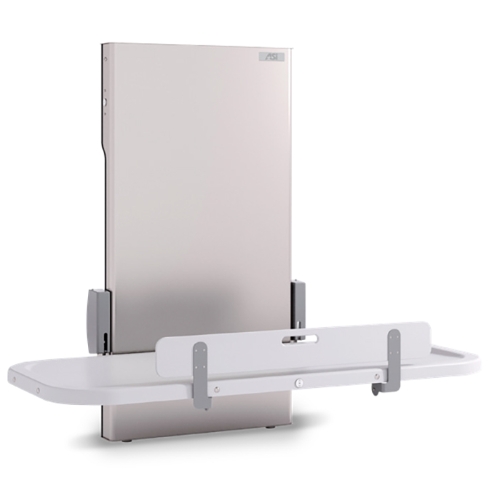

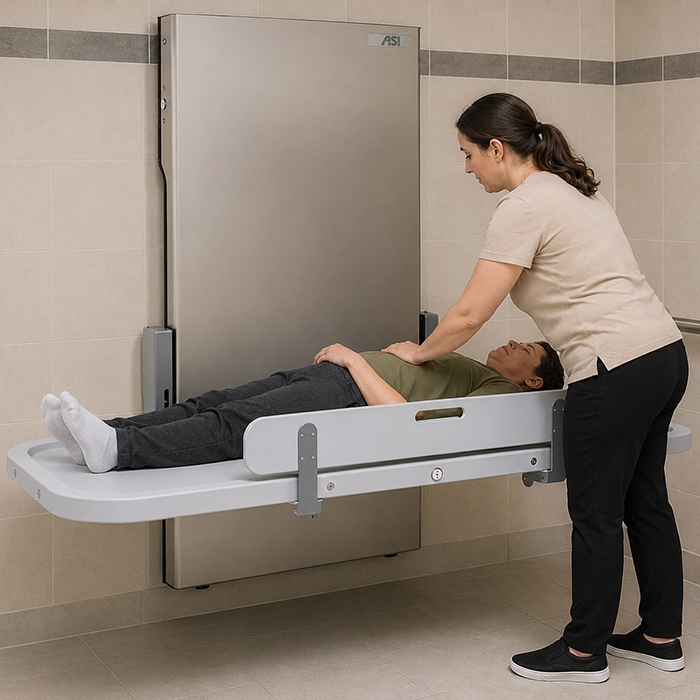

The ASI 9060 universal baby changing station horizontal surface mounted is a motorized changing station designed for adults and individuals with disabilities.  The height adjustable changing surface travels from 16" to 39" using controls located on the front of the changing surface and on the wall module, allowing caregivers to position the changing surface at an appropriate working height.  The station features a Type 304 satin finish stainless steel wall module cover, a powder coated structural steel lifting frame, and a durable ABS plastic changing surface for easy cleaning.  The unit has been tested for water ingress in accordance with IPX6.

Tested to support a 500 lb. static load, the ASI 9060 includes battery backup for operation during power outages, automatic reverse when an obstruction is detected, and a hinged safety rail that helps secure the user during changing. The unit is UL 962 Certified, complies with CSA C22.2 No. 68, and is designed for installation on walls with adequate structural support in accordance with the manufacturer's installation instructions.

Submittal Sheet	Operating Instructions	Maintenance Instructions
ASI Catalog	Changing Table Brochure	Warranty

Dimensions:
Closed: 77-1/16" L x 9-19/32" D x 68-61/64" H
Open: 77-1/16" L x 40-23/32" D x 68-61/64" H



American Specialties, Inc. Model Number 9060
