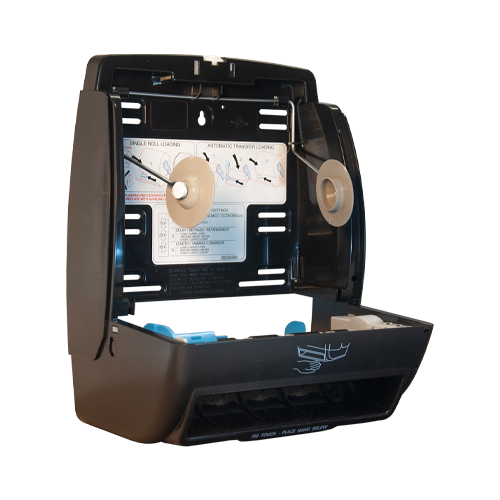

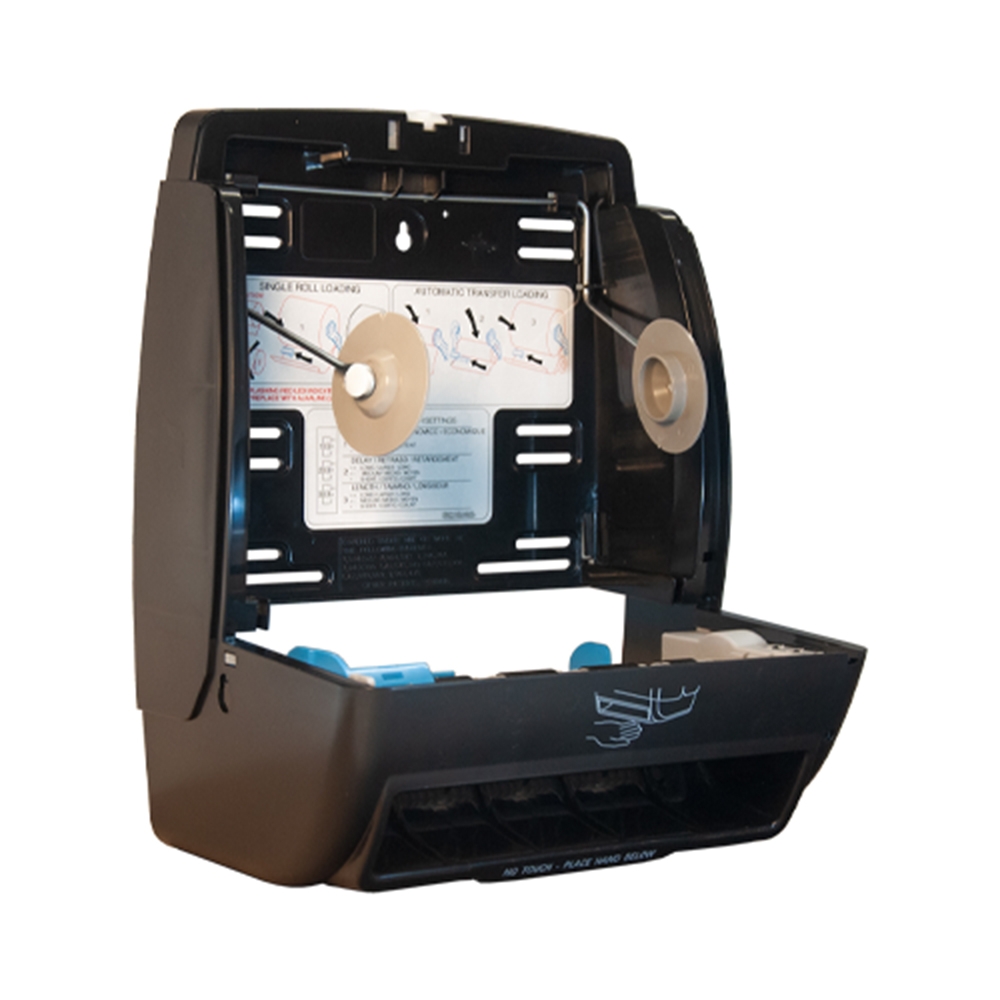

American Specialties 8374 automatic roll towel dispenser mechanism is designed for touchless dispensing of 8" wide × 8" diameter standard roll towels up to 800 ft. long. The mechanism also accommodates an 8" wide stub roll up to 4" in diameter. It operates on four D-size batteries or an optional 72-ACA low voltage AC adapter using 110-240VAC, 50/60 Hz. Owner adjustable length, delay, and paper saver settings control the towel dispensed per activation. The mechanism includes an internal towel cut-off bar. The ASI 8374 is an automatic, touchless roll paper towel dispenser mechanism for installation in compatible ASI cabinets. This product is the mechanism only, not a complete dispenser.
ADA NOTICE: ADA compliant when installed in accordance with applicable ADA accessibility requirements.
Dimensions |
| W x H x D |
| 12-5/16" W × 15-1/16" H × 8-11/16" |
American Specialties, Inc. (ASI) Model: 10-8374
